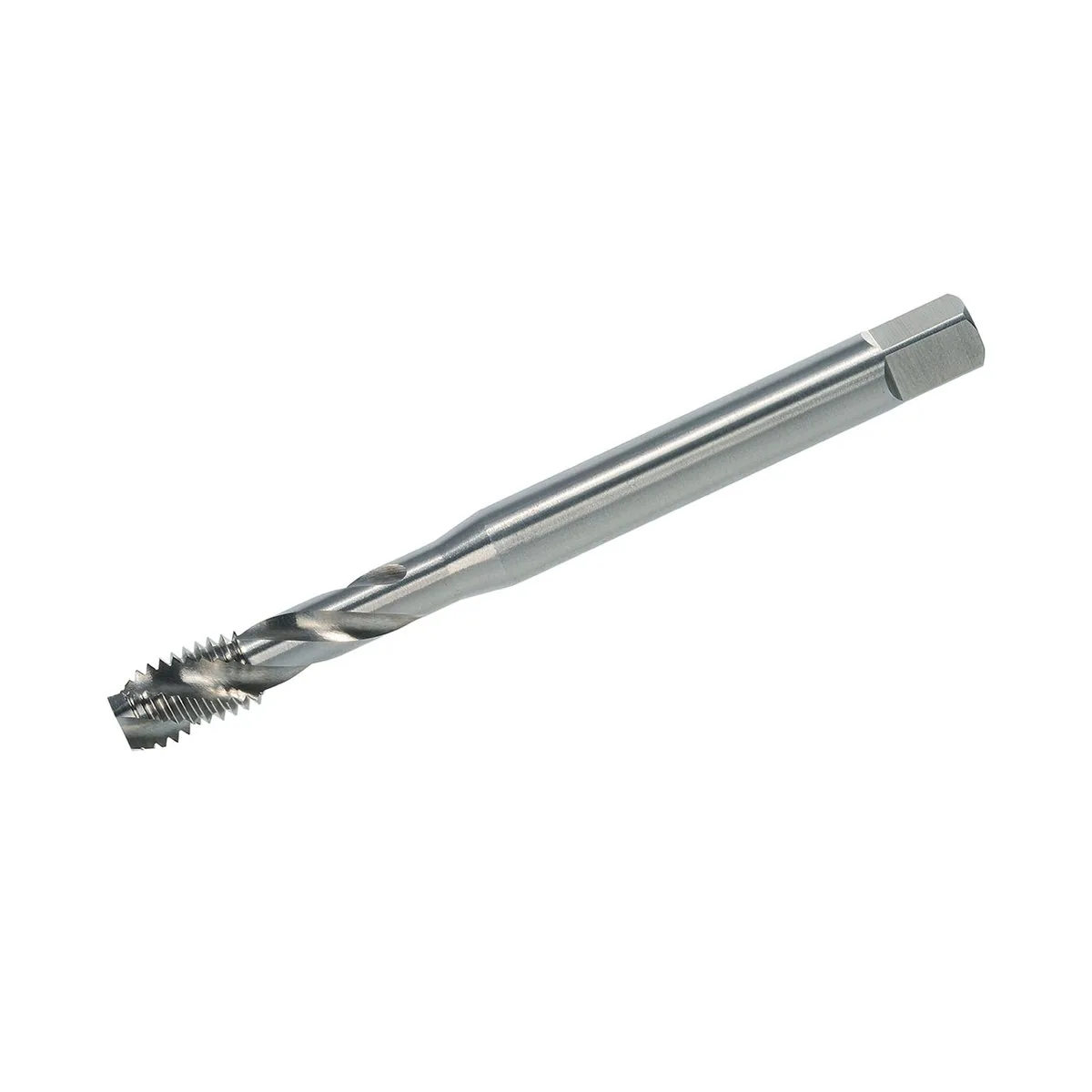

Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE - UNC số 5 x 40

Name: Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE - UNC số 5 x 40
Brand: VOLKEL
SKU: 74705
Price: 599000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE - UNC số 5 x 40 VÖLKEL, mã 74705, phù hợp cho gia công ren trong.

SKU: 74705

599.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE - UNC số 5 x 40

You use Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE - UNC số 5 x 40 when you need a controlled ren trong in a prepared hole during production or maintenance work. The spiral flute supports chip transport out of the hole during tapping.

Selection is driven by thread standard, material group, and the flute geometry shown in the product name, especially when you work in lỗ bít. For inch based thread forms, confirm series and class of fit and avoid mixups between similar designations.

Ứng dụng

Cut ren trong in predrilled holes in mechanical engineering, maintenance, and metal fabrication.
Use for UNC threads as designated in the product name.
Prefer for lỗ bít where chip transport out of the hole is required.
Use a Mũi taro máy holder or tapping chuck that clamps the shank securely and supports straight entry.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Verify the exact designation, standard, and tolerance in the product name before you start.

Lợi ích

Clear assignment to UNC threads through the designation in the product name.
Consistent ren trong geometry when the tool is guided square to the surface.
Suitable for repeatable workflows in maintenance and serial production setups.
Spiral flute supports chip evacuation from lỗ bít and reduces jamming risk.
Efficient chip transport supported by flute design when correct cutting fluid is used.

Hạn chế

Not suitable for hard to machine materials without defined cutting data and stable machine rigidity.
Not intended for high output production where dedicated high performance tooling is required.

Các bước thực hiện

Confirm the thread designation in the product name matches the drawing and the mating screw.
Prepare a suitable predrilled hole and deburr the entry for clean lead in.
Clamp the tap in a stable Mũi taro máy holder or tapping chuck.
Align the spindle square to the surface so the tap starts without side load.
Apply suitable cutting fluid and start tapping with steady feed.
Monitor chip evacuation and reverse out to clear chips if resistance increases.
Back out completely and flush the thread to remove chips and fluid residues.
Inspect the result with a suitable screw or gauge before assembly.

Phạm vi cung cấp

The provided product data does not include an itemized scope of supply for Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE - UNC số 5 x 40. If your process requires accessories such as holders or cutting fluid, select them separately based on your setup.

Đặc tính kỹ thuật

Product type: Mũi taro máy
Thread designation: UNC số 5 x 40
Thread system: UNC
Standard: DIN 371
Tool material: HSSE
Flute type: 35° spiral flute
Tolerance class: Class 2B

Câu hỏi thường gặp (FAQ)

How do you select the correct variant for your drawing Match the thread designation in the product name to the drawing and the mating fastener. Confirm thread series, pitch, and class of fit before you start, especially for inch based threads. Is this tap suitable for lỗ bít or lỗ thông The suitability depends on flute geometry and lead form noted in the product name. Spiral flute execution is typically chosen for lỗ bít because chips are transported out of the hole. Where can you find technical background information for this tap type Use this PDF for technical notes, application limits, and terminology. Inch to mm conversion table as PDF Which tolerance class do you typically achieve The typical tolerance class for this execution is Class 2B when the process is set up correctly and the hole preparation matches the thread system. Do you need cutting fluid Yes, use suitable cutting fluid for the material to reduce friction and control chip formation. Keep lubrication consistent from start to finish and clean the tool after use. Which holder should you use Use a holder that clamps the shank securely and supports straight entry. In manual work this is typically a Tay quay taro, and in machines a tapping chuck or a suitable collet holder. Where can you find the VÖLKEL catalog for additional variants and technical context Use the catalog for the full program and selection guidance. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	Unified coarse thread
Tiêu chuẩn	DIN 371
Form	Form C
Vật liệu	HSSE
Tolerance	2B
Kích thước	UNC No. 5 x 40
Overall length (L1)	56 mm
Thread length (L2)	7 mm
Core hole diameter (D1)	2.6 mm
Shank diameter (D2)	3.5 mm
Drive connector	2.7 mm
EAN	4022835747055
Mã hàng	74705
Type of flute	35° Spiral Flute
Phạm vi ứng dụng	for blind holes
Chuẩn ren	ANSI B 1.1
