HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - UN 2" x 8

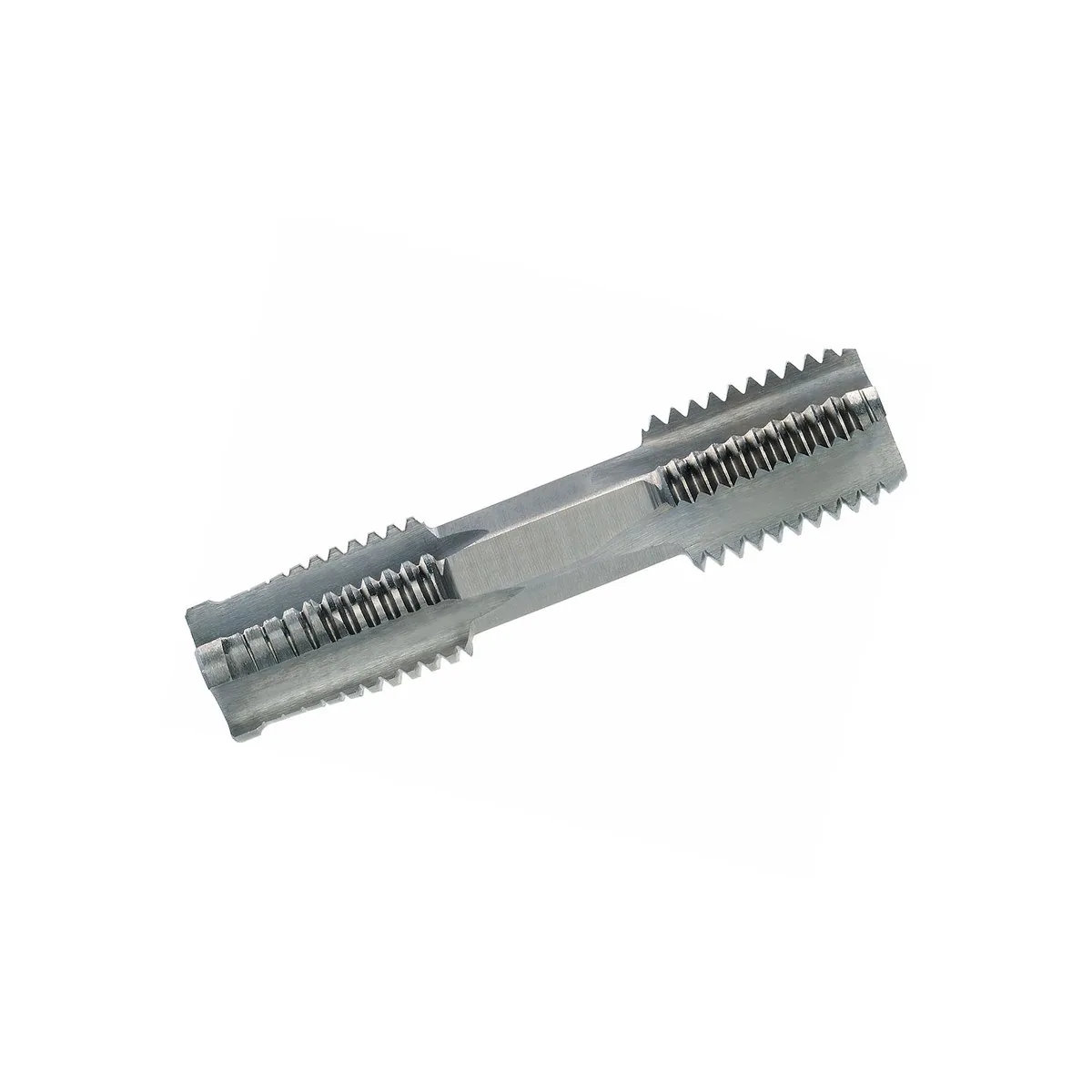

Name: HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - UN 2" x 8
Brand: VOLKEL
SKU: 67909
Price: 11989000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - UN 2" x 8 VÖLKEL, mã 67909, phù hợp cho gia công ren trong.

SKU: 67909

11.989.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - UN 2 inch x 8

This HexTap Type DS helps with large assembly repair where high torque tapping is required on UN ren trong.

The compact body is useful when surrounding geometry limits swing radius, and the Multi-Drive interface supports firm engagement with suitable drivers.

Ứng dụng

Produce UN ren trong for large fasteners in equipment, transport, and structural builds.
Re tap threads that bind due to contamination or slight thread flank damage.
Prepare holes for threaded hardware during field repairs.
Use where a compact double ended tap reduces handling effort.

Lưu ý Match the drive tool to the available clearance and torque requirement, and protect the cutting edges during transport and storage.

Lợi ích

Compact double ended tap supports efficient handling on large assemblies.
Multi-Drive interface supports different driver types for confined installation points.
Form C chamfer supports controlled entry and stable guidance.
HSS-G execution supports repeatable performance in common metallic materials.
Supports thread making and thread restoration without complex setup.

Hạn chế

Not suitable for materials with high hardness or strong work hardening without testing.
Not intended for high speed, high throughput manufacturing environments.

Các bước thực hiện

Confirm the thread specification and the required thread depth for the job.
Prepare the hole entrance so the tap can locate cleanly.
Secure the assembly to prevent movement during tapping.
Choose a Multi-Drive drive option that fits the torque and access. Technical information HexTap DS as PDF
Lubricate the tool with cutting fluid suitable for the material.
Start the tap with firm alignment to the hole axis.
Cut the thread while clearing chips to avoid overload.
Verify fit with the mating fastener after cleaning.

Phạm vi cung cấp

HexTap Type DS double ended tap in the selected UN size and execution.

Đặc tính kỹ thuật

Thread type: UN ren trong
Tool type: HexTap Type DS double ended tap
size: UN 2 inch x 8
Drive interface: Multi-Drive interface
Chamfer: Form C chamfer
Tool material: HSS-G
Công dụng: cắt ren, taro lại ren, and làm sạch ren depending on condition
Quy trình: manual driving or assisted driving depending on your holder and machine setup

Câu hỏi thường gặp (FAQ)

How do you confirm that this tap matches the thread you need? Compare the thread designation on the tool with the drawing or the mating fastener. If thread identification is uncertain, check with a gauge before cutting. How does the double ended design support larger thread work? It helps you keep the process compact and controlled at higher torque levels. Use stable driving and good lubrication to protect the cutting edges. How do you choose between different drive options? Select the drive option that fits the available space and gives stable torque control. Avoid setups that twist the tool axis under load. What should you do if the tap feels unstable at the start? Stop and check alignment and hole preparation. A misaligned start can damage the first thread turns quickly. How do you avoid poor surface finish on the thread? Maintain alignment and lubrication and keep chips from packing in the flutes. Clean the hole between passes if needed. How do you handle a thread that still binds after taro lại ren? Clean the thread fully and inspect the first turns for deformation. If binding persists, verify the thread designation and consider repair options. Where can you find more technical data and selection guidance? For additional specifications and application guidance, see the VÖLKEL catalog. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	Unified thread
Tiêu chuẩn	Works Standard
Form	Form C
Vật liệu	HSS-G
Tolerance	2B
Kích thước	UN 2" x 8
Overall length (L1)	140 mm
Thread length (L2)	42 mm
Core hole diameter (D1)	47.75 mm
Width across flat (SW1)	mm mm
Width across flat (SW2)	mm mm
EAN	4022835679097
Mã hàng	67909
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	ANSI B 1.1
