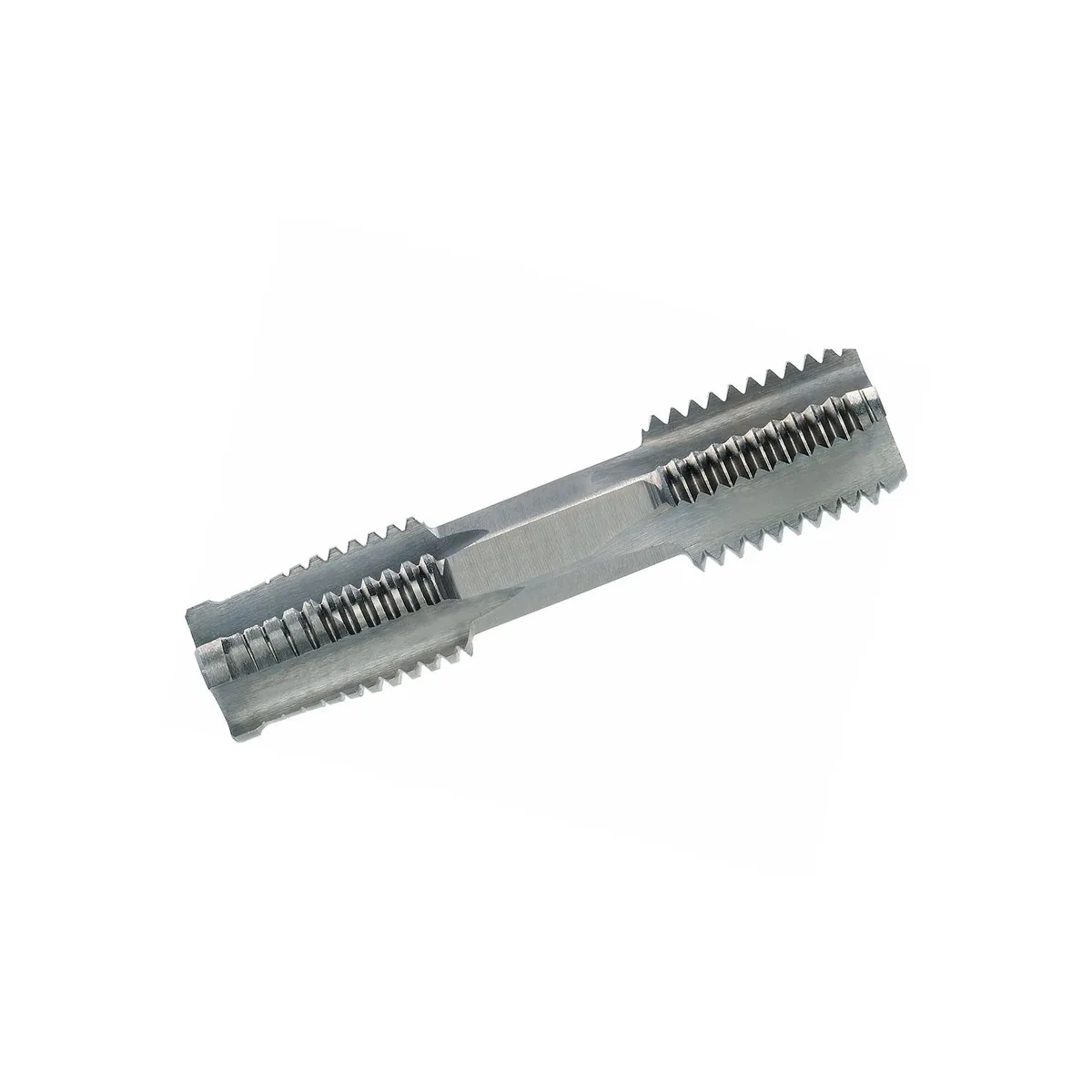

HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.75

Name: HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.75
Brand: VOLKEL
SKU: 67766
Price: 1542000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.75 VÖLKEL, mã 67766, phù hợp cho gia công ren trong.

SKU: 67766

1.542.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.75

Use this threading bit when you want a compact drive interface for tapping tasks in maintenance, installation, and fitting.

Check that your hole preparation and holder setup match the tool style, since misalignment is a common cause of poor thread quality. M denotes ISO metric thread designation used for common metric screw threads in machine building and maintenance. HSS-G indicates a ground high speed thép tool, typically selected when edge definition and repeatability matter.

Ứng dụng

Create ren trong in prepared holes for fasteners and assemblies.
Practical for assembly and service work where you use a compact hex drive interface.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
Use a suitable Chất bôi trơn cắt gọt ren for the work material and keep the tool aligned to the axis.

Lưu ý Use cutting fluid suitable for the work material and keep the tool aligned during the first turns.

Lợi ích

Compact drive concept for access restricted tapping points
Easy integration with reversible drills and bit holders
Supports quick tool changes in assembly and service work
Practical for on site thread maintenance tasks

Hạn chế

Not suitable for every work material without correct cutting fluid and stable alignment
Requires careful handling to avoid edge damage in busy shop environments

Các bước thực hiện

Prepare the hole and remove burrs so the tool starts straight.
Clamp the workpiece securely and align the tool to the hole axis.
Use a suitable holder or drive and apply cutting fluid for the work material.
Start the thread with controlled feed and keep the tool guided through the first turns.
Continue with steady torque and clear chips from the cutting area as needed.
Reverse to remove the tool, then clean the thread and the tool flutes.
Check the thread with the intended fastener or a suitable gauge and protect the part.

Phạm vi cung cấp

1 chiếc HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.75

Đặc tính kỹ thuật

Product type: Threading Bit
Thread designation: M
Chamfer form: Form C
Tool material: HSS-G

Câu hỏi thường gặp (FAQ)

How do you select the correct thread designation for this product Match the thread designation in the product name to the mating fastener or component standard, then confirm that your workpiece material and process setup suit the tool type. If you work with mixed standards, separate your tooling by thread family to avoid mix ups. What drive tools can you use with a threading bit Use a reversible drive tool that matches the hex drive in the product name, such as a bit holder or a drill driver with reverse. Keep speed low and alignment straight. If the thread is critical, finish with a controlled hand feel. Which hole preparation checks matter most Prepare the entry edge, remove burrs, and keep the hole clean so the tool starts straight. In lỗ bít, confirm that there is enough depth for the tool lead and chip space. In lỗ thông, support chip evacuation out of the exit side. How do you reduce the risk of misalignment Start the tool with the axis visually aligned, then guide it through the first turns with low torque. Use stable workholding and avoid side load. If a thread feels tight early, remove the tool, clean chips, and inspect the entry. Can you use this in repair work Yes, for many workshop repairs you can use the tool to restore a usable thread when the base material is still intact. Clean damage first and avoid forcing, since distorted threads can increase torque and edge wear. For heavily stripped threads, a sửa ren insert system can be the better option. Where can you find the full VÖLKEL catalog section for this product family VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric-fine ISO-thread
Tiêu chuẩn	Works Standard
Form	Form C
Vật liệu	HSS-G
Tolerance	ISO2 (6H)
Kích thước	M 22 x 0.75
Overall length (L1)	80 mm
Thread length (L2)	24 mm
Thread length (L4)	24 mm
Core hole diameter (D1)	21.25 mm
Width across flat (SW1)	mm mm
Width across flat (SW2)	mm mm
EAN	4022835677666
Mã hàng	67766
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	DIN 13
