Trang chủ Mũi taro ren HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.5

Mũi taro ren

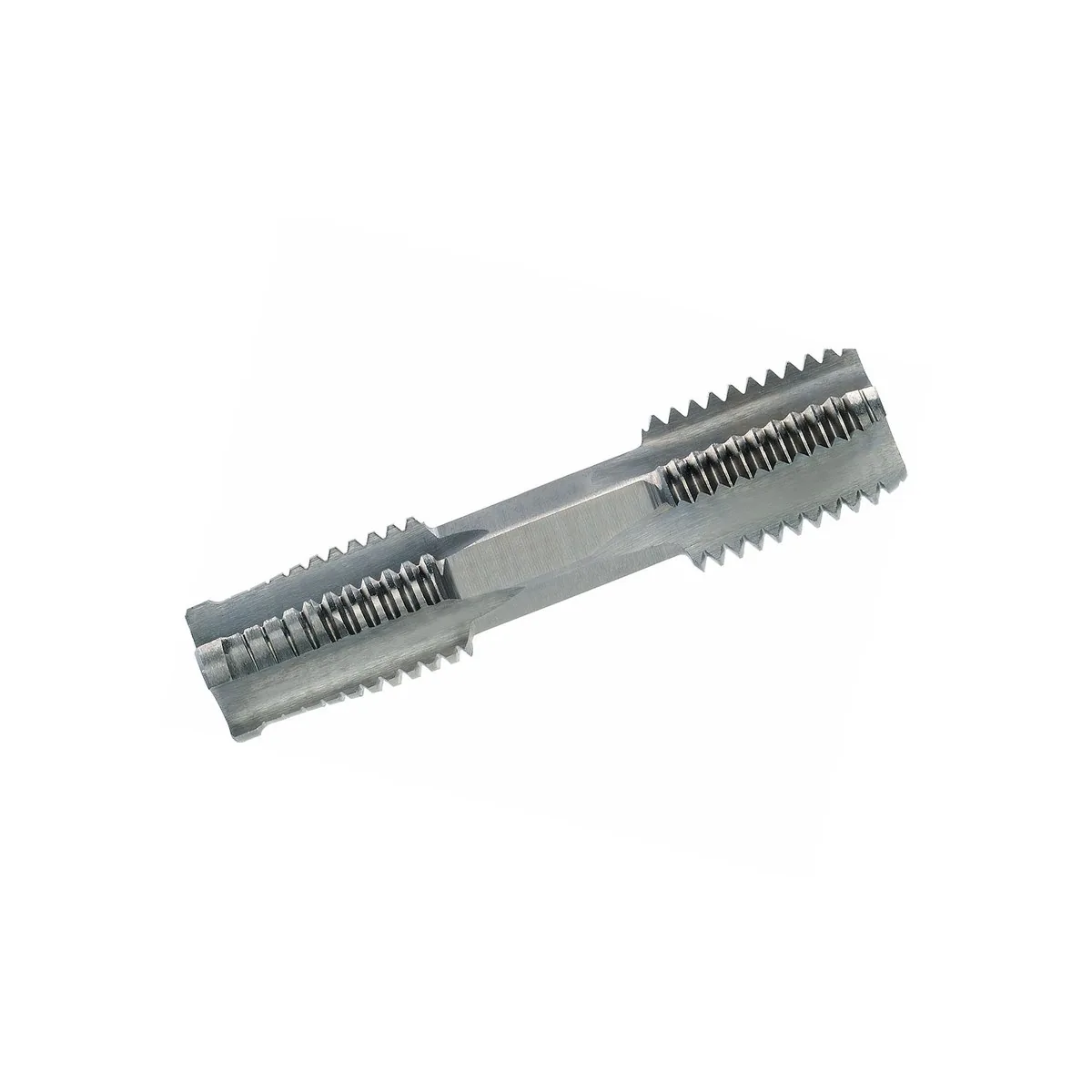

HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.5

Name: HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.5
Brand: VOLKEL
SKU: 67765
Price: 1542000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

HexTap Type DS - Double ended tap, Multi-Drive Form C HSS-G - M 22 x 0.5 VÖLKEL, mã 67765, phù hợp cho gia công ren trong.

SKU: 67765

1.542.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

VÖLKEL HexTap Type DS Tap M 22 x 0.5

VÖLKEL HexTap Type DS Multi-Drive Tap - M 22 x 0.5

The VÖLKEL HexTap Type DS Multi-Drive tap is an innovative and versatile tool for cutting ren hệ mét ISO bước mịn of size M 22 x 0.5. This double-sided tool combines a roughing and finishing cutter in one and, thanks to its unique Multi-Drive system, is the perfect solution for hard-to-reach places where conventional tap wrenches reach their limits. Made from high-quality HSS-G material, this tap guarantees maximum precision and a long service life for creating and repairing threads.

A tool that adapts to any situation

The core of this tap is its intelligent Multi-Drive concept, which offers you maximum flexibility in application. The drive is designed in two ways:

External Hexagon (Wrench size 17 mm): This allows for the use of an open-end wrench to turn the tool securely and powerfully – ideal when you need to apply a firm torque.
Internal Hexagon (Wrench size 6 mm): This serves as a drive for a ratchet or an angled screwdriver. This is particularly advantageous when you have to work in confined spaces or need to find a quick, precise approach without being able to use a Tay quay taro.

Thanks to this versatility, the HexTap DS is the first choice for craftsmen and mechanics who have to work in tight engine compartments, on complex machines, or in other confined environments. An integrated guide pin also ensures precise, straight engagement and prevents the tap from tilting.

What does the tap geometry "Form C" mean?

The designation "Form C" describes the chamfer geometry of the tap. A tap of Form C has a lead of 2 to 3 thread pitches. This is the most commonly used chamfer for Mũi taro ren tay (tạo ren trong) and is ideally suited for creating threads in:

lỗ thông: The thread is cut in a hole that passes completely through the workpiece.
lỗ bít: The thread is cut in a hole that does not go completely through the workpiece. Form C ensures that the thread can be cut almost to the bottom of the hole.

Thus, Form C is a universal and efficient choice for most manual cắt ren applications in the described materials.

Technical Data at a Glance

Thread Type: ren hệ mét ISO bước mịn DIN 13
Material: HSS-G
Tolerance: ISO 2 / 6H
Nominal size: M 22 x 0.5
Overall Length (L1): 80 mm
Thread Length (L4): 24 mm
Wrench size (SW1): 17 mm (External Hexagon)
Wrench size (SW2): 6 mm (Internal Hexagon)
EAN: 4022835677659
Article Number: 67765

Câu hỏi thường gặp (FAQ)

Q1: What is the advantage of a double-sided tap? The double-sided tap combines a roughing and finishing cutter in one tool. This saves time because you don't have to switch between two tools and simplifies the process by working directly with a tool that is optimized for the final cut.
Q2: Can I also use this tap for lỗ bít? Yes. Thanks to the Form C chamfer with 2-3 pitches, this tap is very well suited for use in lỗ bít. The cut can be made almost to the bottom of the hole.
Q3: What does HSS-G stand for and what are its advantages? HSS-G stands for "High Speed thép, Ground". It means that the tap is made from high-quality high-speed thép and the thread flanks have been precision-ground. The result is high cutting performance, a long tool life, and excellent cut quality.
Q4: What does the tolerance "ISO 2 / 6H" mean? The tolerance ISO 2 / 6H defines the fit of the thread to be cut. ISO 2 is a common tolerance class for general-purpose threads, while 6H describes the position and size of the tolerance field. This ensures that the cut thread has a standard fit for common screws.
Q5: Can I use the tap with a normal Tay quay taro? No, this tap is specially designed for the Multi-Drive system. It does not have a square drive like conventional taps, but an external and internal hexagon. It should therefore be used with an open-end wrench, a ratchet, or an angled screwdriver.

The VÖLKEL HexTap DS is the modern solution for manual cắt ren – precise, flexible, and extremely powerful.

.accordion-container { margin-top: 20px; border: 1px solid #e0e0e0; border-radius: 5px; overflow: hidden; } .accordion-item { margin-bottom: 0; border-bottom: 1px solid #eee; } .accordion-item:last-child { border-bottom: none; } .accordion-header { padding: 15px 20px; background-color: #f8f8f8; cursor: pointer; display: flex; align-items: center; justify-content: space-between; font-weight: 600; color: #333; transition: background-color 0.2s ease; } .accordion-header h3 { margin: 0; font-size: 1.1em; color: inherit; } .accordion-header::marker, .accordion-header::-webkit-details-marker { display: none; } .accordion-header::after { content: '\25BC'; font-size: 0.8em; transition: transform 0.2s ease; margin-left: 10px; } details[open] > summary.accordion-header::after { transform: rotate(-180deg); } .accordion-header:hover { background-color: #f0f0f0; } .accordion-content { padding: 15px 20px; background-color: #ffffff; line-height: 1.6; color: #555; } .accordion-content p, .accordion-content ul, .accordion-content ol, .accordion-content dl { margin-bottom: 10px; } .accordion-content p:last-child, .accordion-content ul:last-child, .accordion-content ol:last-child, .accordion-content dl:last-child { margin-bottom: 0; } .accordion-content a { color: var(--primary-color, #007bff); text-decoration: none; } .accordion-content a:hover { text-decoration: underline; }

Thuyết minh kỹ thuật

Loại ren	metric-fine ISO-thread
Tiêu chuẩn	Works Standard
Form	Form C
Vật liệu	HSS-G
Tolerance	ISO2 (6H)
Kích thước	M 22 x 0.5
Overall length (L1)	80 mm
Thread length (L2)	24 mm
Thread length (L4)	24 mm
Core hole diameter (D1)	21.5 mm
Width across flat (SW1)	mm mm
Width across flat (SW2)	mm mm
EAN	4022835677659
Mã hàng	67765
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	DIN 13
