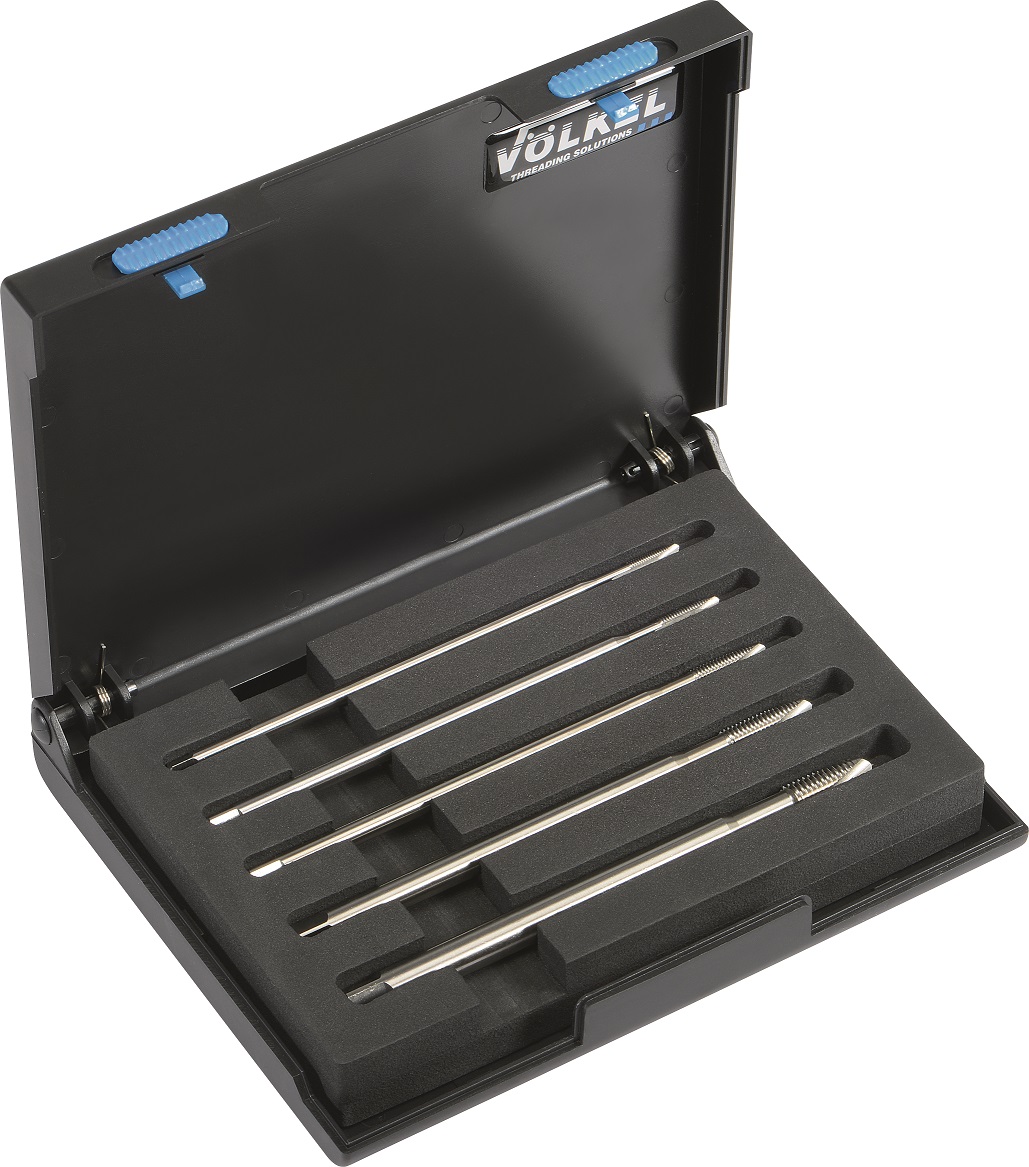

Mũi taro máy set M4-M10, Form B, extra long - 150 mm

• Use for ren trong production in prepared holes in common engineering materials, within the limits of the tool grade.
• Use in workshop production where stable alignment and adequate lubrication are available.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Select the thread system and nominal size from the product title to match the drawing and the mating part.

• Suitable for mechanical engineering and maintenance work where repeatable fits are required.
• Supports consistent ren trong quality when tool alignment and hole preparation are controlled.

• Not suitable for materials outside the hardness and toughness range intended for the tool grade.
• Requires clean hole preparation and stable guidance, so it is not ideal for high throughput rough setups.

1. Confirm the thread system and nominal size in the product title against your drawing and mating part.
2. Prepare the hole with the correct drilling operation and remove burrs from the entry.
3. Select a suitable holder that keeps the tap aligned and provides controlled torque.
4. Apply a cutting fluid appropriate for the workpiece material and the selected tap type.
5. Start tapping with steady alignment and keep the axis straight to avoid flank damage.
6. Advance with controlled feed and clear chips from the flutes as needed without forcing the tool.
7. Stop at the required thread depth and withdraw the tap while maintaining alignment.
8. Clean the thread and verify fit with the mating part or with a suitable gauge.
9. Clean and protect the tool before storage to reduce corrosion and edge damage.

Scope of supply is defined by your order confirmation and delivery note.

• Product type: Tap set
• Thread system: Metric

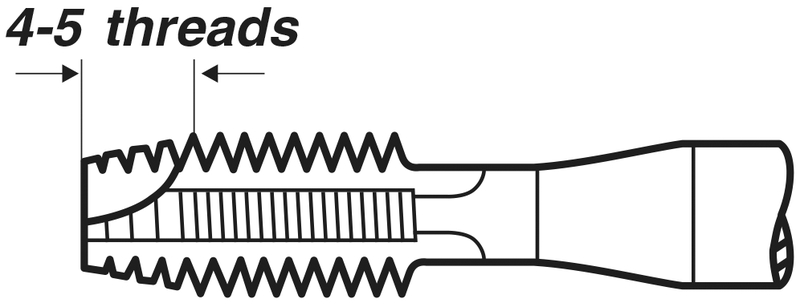

• Chamfer form: Form B
• Tolerance class: ISO 2 / 6H
