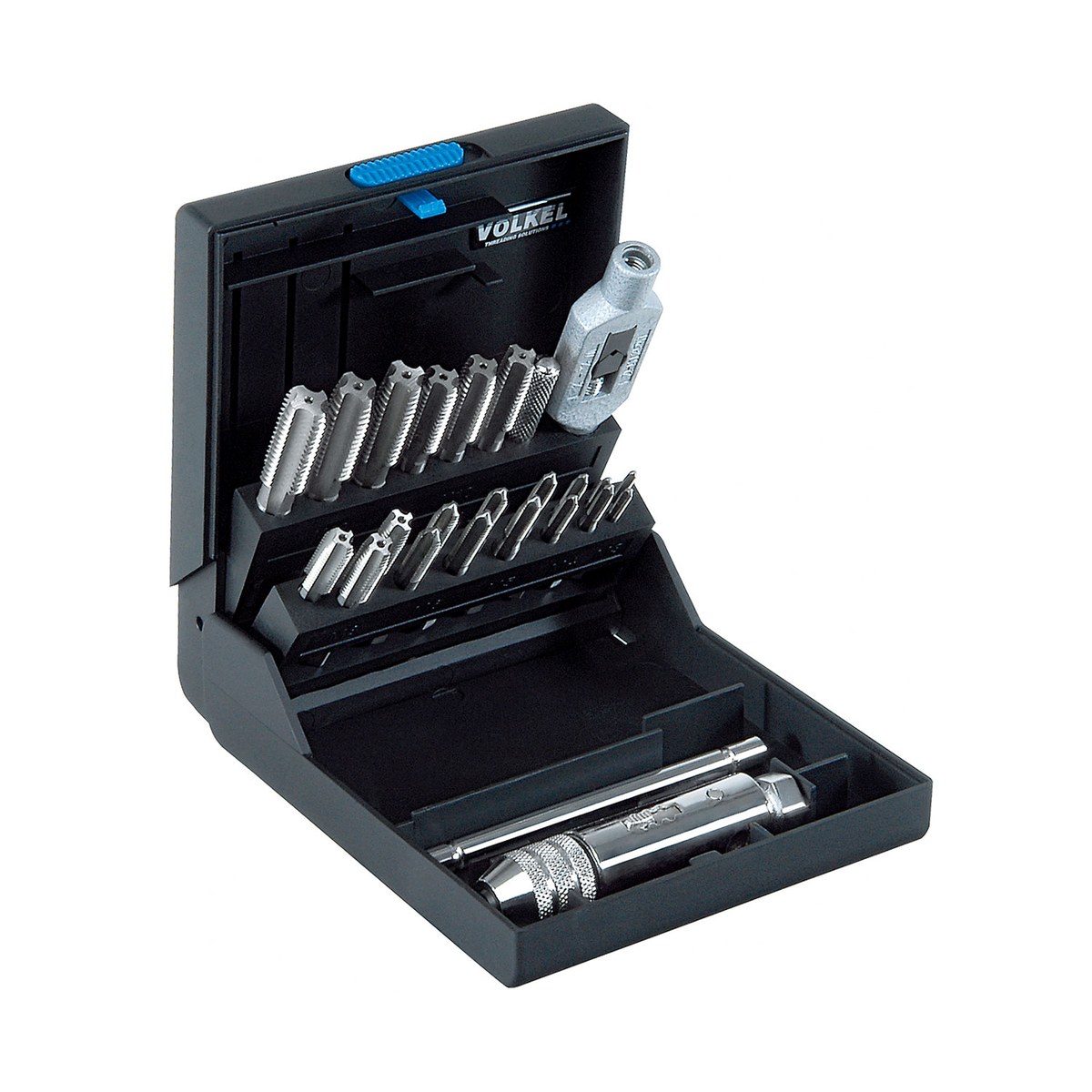

Mũi taro ren tay (tạo ren trong) (set of 22 pcs.) UNC số 5 – UNC 1/2

• Cutting or reworking ren trong when controlled hand guidance is preferred
• Starting the tap carefully so the tool tracks on axis and follows the intended thread direction
• Using the tool in maintenance, fixture work and smaller batch production where direct feel is valuable
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Select the product by thread designation, workpiece condition and the holder concept used in your process.

• Thread related geometry and designation are clearly assigned in the product name for practical selection
• Suitable for workshop, maintenance and machine room workflows with repeatable tool use
• The explicit standard and material markings support controlled tool assignment in professional use
• A dedicated threading tool reduces compromise compared with improvised general purpose tooling

• Tool selection still depends on matching the thread system, material and process type to the actual job.
• It is intended for defined threading work and not for undirected high speed use without the correct setup and lubrication strategy.

1. Prepare the bore and mount the tap securely in a compatible Tay quay taro.
2. Start the tap square to the hole with controlled manual pressure.
3. Continue turning while monitoring alignment and the running behavior of the tool.
4. Reverse the tap at controlled intervals to keep the cutting path free.
5. Remove the tap once the thread is completed and clean the bore.
6. Check the finished thread before fitting the mating component.

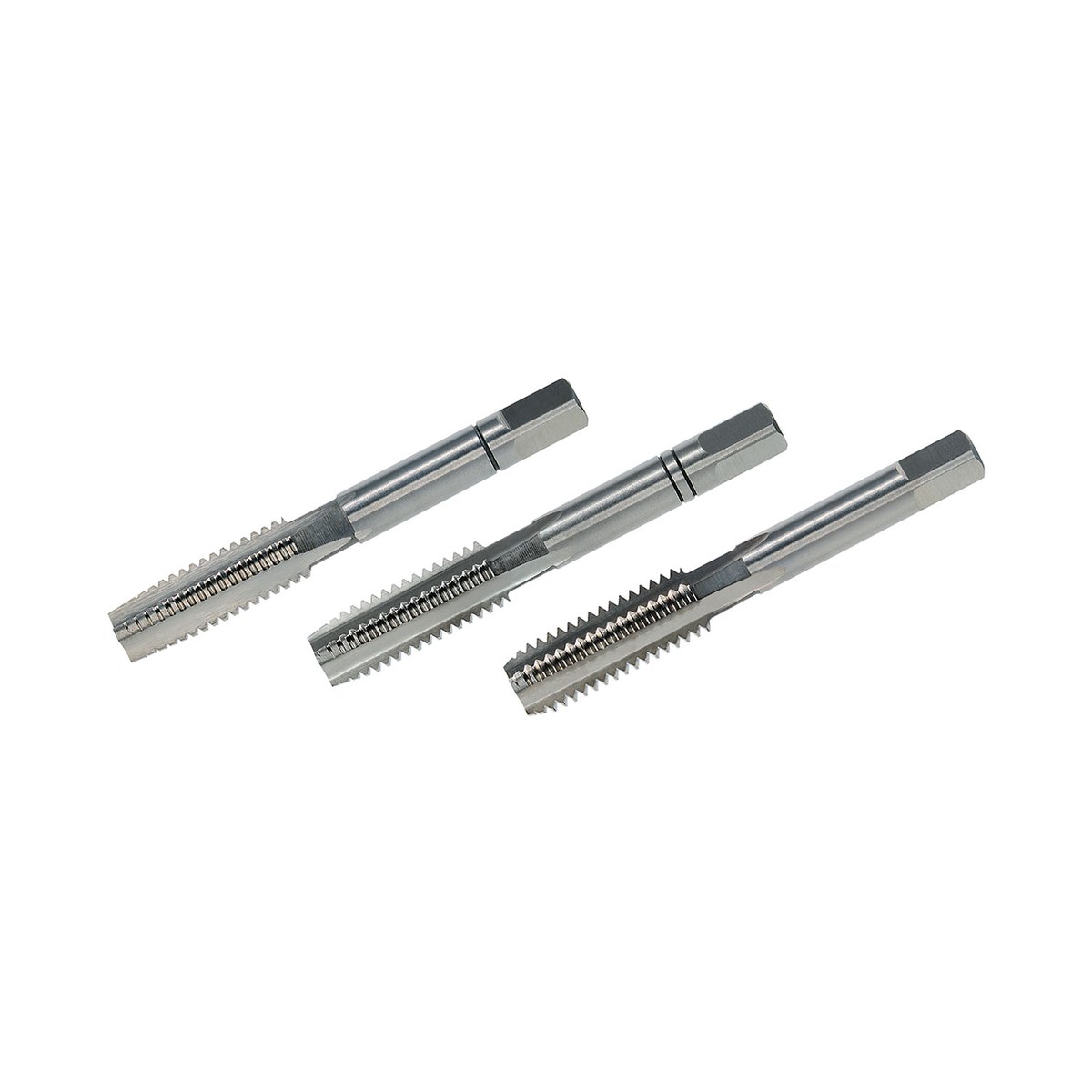

• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - UNC số 5 x 40 VÖLKEL 23305
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - UNC số 8 x 32 VÖLKEL 23308
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - UNC số 10 x 24 VÖLKEL 23310
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - UNC 1/4 x 20 VÖLKEL 23314
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - UNC 5/16 x 18 VÖLKEL 23316
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - UNC 3/8 x 16 VÖLKEL 23318
• 1x Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - UNC 1/2 x 13 VÖLKEL 23322

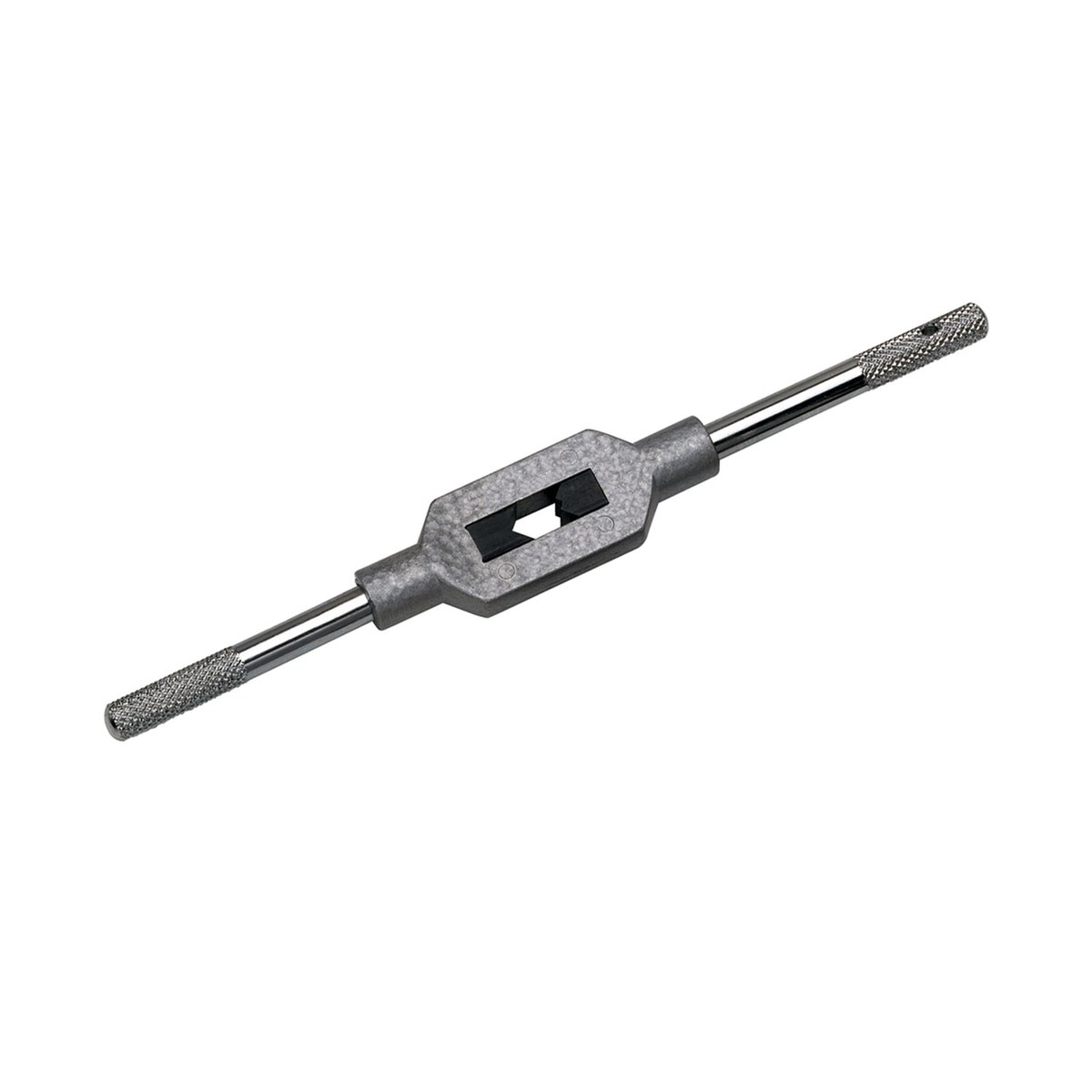

• 1x Tay quay taro điều chỉnh Zinc die cast số 1.1/2 VÖLKEL 13015

• Product type: Mũi taro ren tay (tạo ren trong)
• Thread system: UNC
• Standard: DIN 352
• Tool material or finish: HSS-G

What do you use Mũi taro ren tay (tạo ren trong) (set of 22 pcs.) UNC số 5 – UNC 1/2 for?

You use this product for a defined threading step such as ren trong cutting, ren ngoài cutting, hole preparation or controlled tool handling depending on the product type.

Có thể xem thêm thông tin kỹ thuật ở đâu?

For additional technical background, see Technical information Mũi taro ren tay (tạo ren trong) as PDF.

When is hand guidance useful?

Hand guidance is useful when you want close control during thread entry, rework or maintenance work on individual parts and smaller series.

Có thể xem thêm tài liệu kỹ thuật liên quan ở đâu?

For a second related reference, see Inch to mm conversion table as PDF.

What does the UNC designation mean?

UNC denotes Unified National Coarse, an inch based thread series used for general fastening where robust engagement and service friendly assembly are important.

Có thể xem mục catalog của nhóm sản phẩm này ở đâu?

For catalog level orientation, see VD 23 catalog as PDF.

What should you check after the operation?

Check the thread entry, running behavior and general fit with the mating part or the next process step before releasing the workpiece.

How do you protect tool life in daily use?

Use stable alignment, suitable lubrication and a holder concept that matches the torque and guidance demands of the product.
