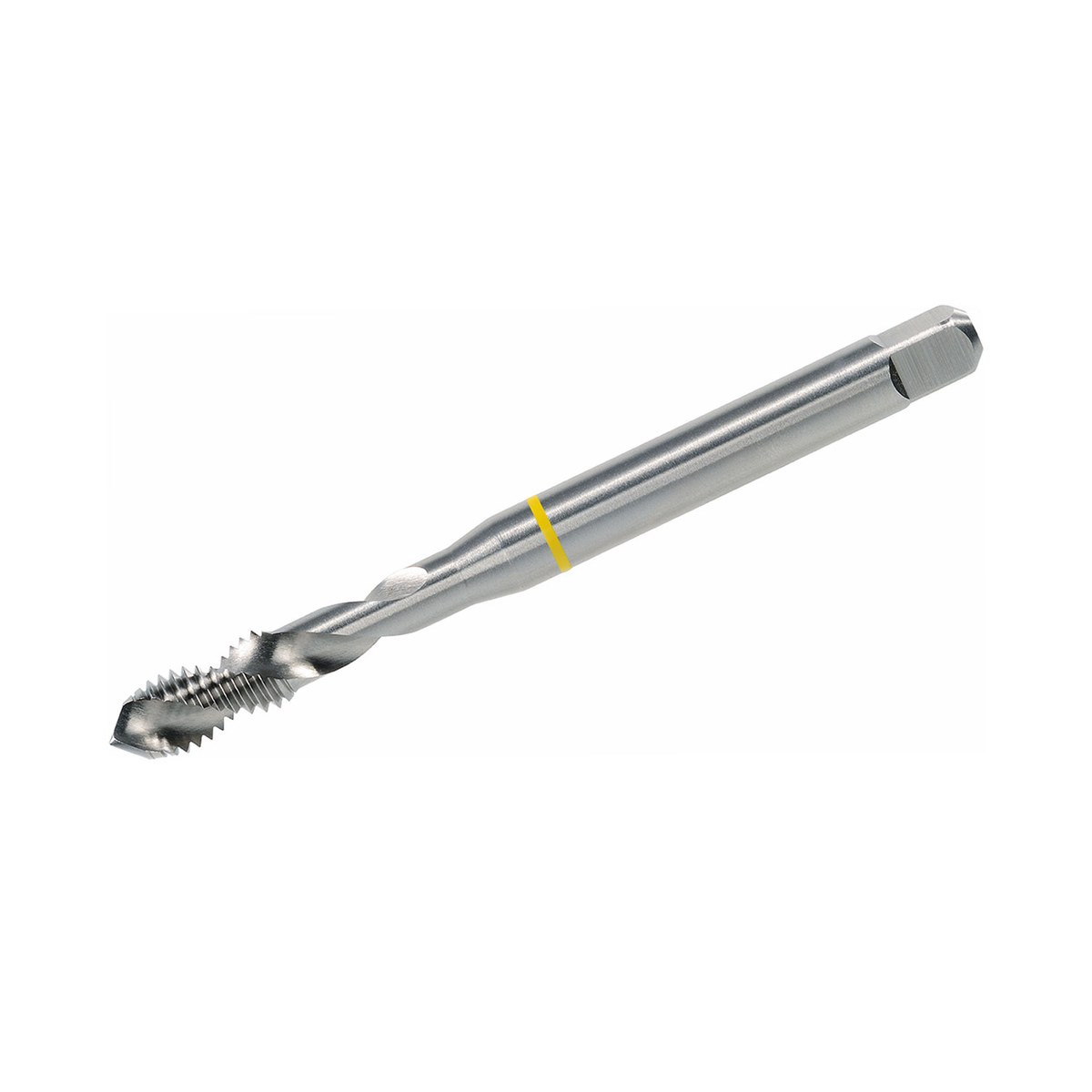

Mũi taro máy YELLOW RING DIN 376 Form C 40° Spiral Flute HSSE - UNC 1/2 x 13

• Cut ren trong in drilled holes for new production and repair work.
• Select the tool by matching the thread system and series from the designation to the mating screw or drawing requirement.
• Use a suitable tap holder or Tay quay taro to keep the tool aligned and to avoid side load.
• Support maintenance in mechanical engineering, plant engineering, and metal fabrication when replacement parts must match existing fasteners.
• Process: manual driving or assisted driving depending on your holder and machine setup.
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition.

Lưu ý Use cutting fluid suitable for the work material and keep the tool square to the hole axis.

• Clear thread designation supports correct selection and documentation.
• Tool geometry terms in the name support consistent process planning.
• Suitable for workshop use when hole preparation and alignment are controlled.
• Material abbreviation in the name supports expectations for heat resistance tendency and wear behavior.

• Not intended for brittle materials without an adapted tapping strategy and adequate lubrication.
• Not suitable for high performance production without rigid alignment and controlled coolant supply.

1. Confirm that the designation matches the required thread system and the intended hand or machine use.
2. Prepare the hole with the correct core hole drill and a clean chamfer.
3. Mount the tool in a suitable holder and align it to the hole axis.
4. Apply cutting fluid that matches the work material and process.
5. Start the cut with steady feed and keep alignment constant.
6. Periodically reverse slightly to clear chips and reduce torque.
7. Continue to the required thread depth, then back the tool out fully.
8. Clean the thread and check it with a suitable gauge or mating part.

• 1 chiếc Mũi taro máy YELLOW RING DIN 376 Form C 40° Spiral Flute HSSE - UNC 1/2 x 13

• Product type: Mũi taro máy
• Standard: DIN 376
• Chamfer form: Form C
• Flute concept: Spiral flute
• Thread system: UNC
• Material marking: HSSE

Match the complete designation to the drawing or the mating screw, including thread system, series, and direction. Avoid mixing similar looking inch and metric systems during preparation.

Choose a Mũi taro máy when the process is driven by a machine or a guided holder that keeps feed and alignment consistent. For manual work, a Mũi taro ren tay (tạo ren trong) or a Mũi taro ren tay (tạo ren trong) set can be the better choice.

Form C describes the chamfer style and influences how the tool starts and how deep you can thread before full profile is reached. Spiral flute tools typically lift chips out of the hole, which is often helpful in lỗ bít when chip evacuation is critical.

Drill the correct core hole, remove burrs, and add a small chamfer to support clean thread entry. Clean the hole and apply cutting fluid suitable for the work material before you start.

Technical information machine taps as PDF

Keep the tool aligned, use adequate lubrication, and avoid side load during entry. Clear chips regularly and stop if torque rises unexpectedly.

VD 23 catalog as PDF

HSSE indicates a cobalt alloyed high speed thép grade that can improve hot hardness tendency in demanding materials.
