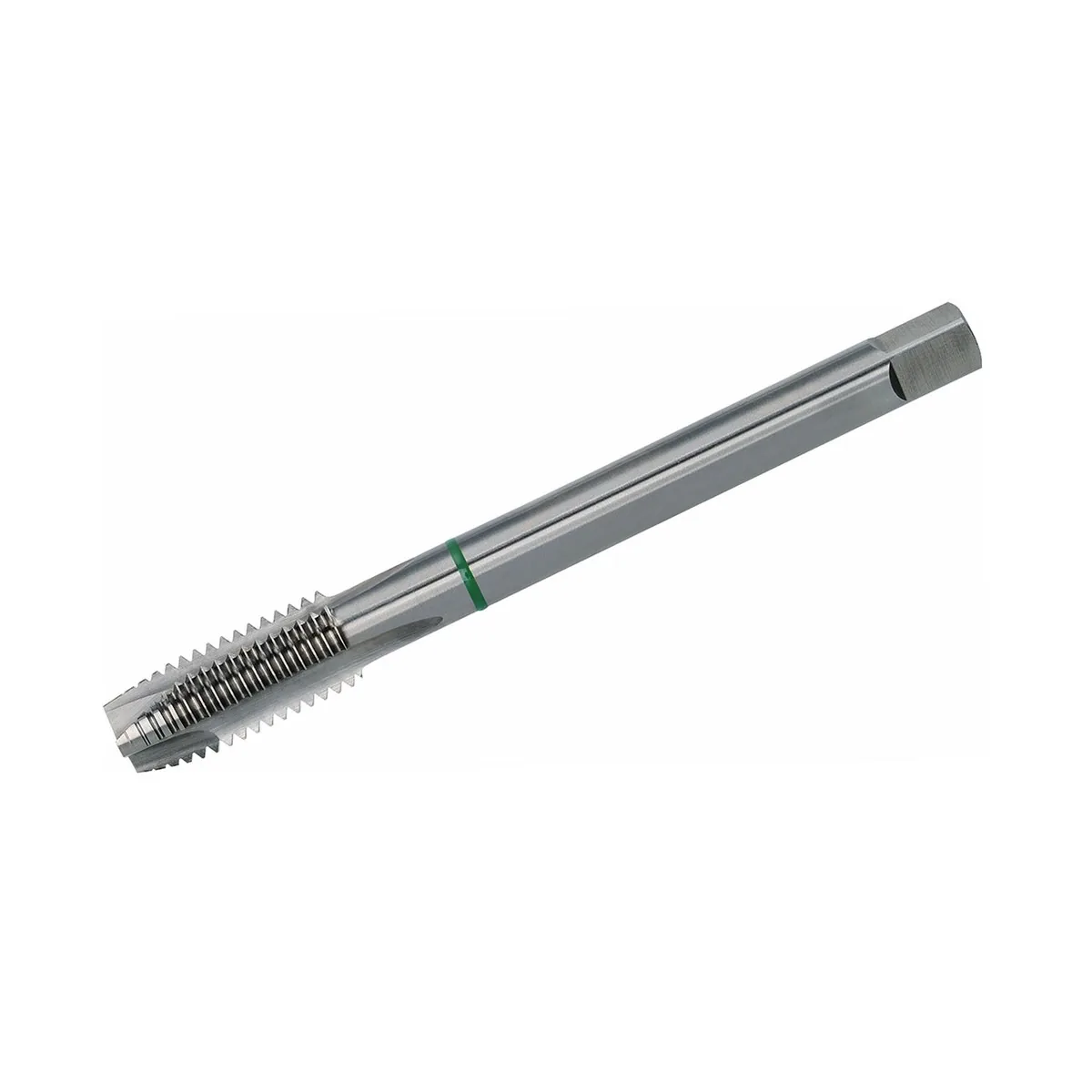

GREEN RING Mũi taro máy DIN 376 Form B HSSE - M 30 x 3.5

Name: GREEN RING Mũi taro máy DIN 376 Form B HSSE - M 30 x 3.5
Brand: VOLKEL
SKU: 35378
Price: 6915000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

GREEN RING Mũi taro máy DIN 376 Form B HSSE - M 30 x 3.5 VÖLKEL, mã 35378, phù hợp cho gia công ren trong.

SKU: 35378

6.915.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

GREEN RING Mũi taro máy DIN 376 Form B HSSE - M 30 x 3.5

GREEN RING Mũi taro máy DIN 376 Form B HSSE - M 30 x 3.5 supports controlled internal threading in workshop production when you need consistent thread quality across parts. The specified Form B supports a defined lead and entry geometry.

Choose the tool based on thread system, chamfer form, and the way chips are evacuated in your process.

Ứng dụng

Use for ren trong production in prepared holes in common engineering materials, within the limits of the tool grade.
Use in workshop production where stable alignment and adequate lubrication are available.
Use the ring marking in the title for fast identification when multiple tap types are stored together.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Select the thread system and nominal size from the product title to match the drawing and the mating part.

Lợi ích

Supports consistent ren trong quality when tool alignment and hole preparation are controlled.
Suitable for mechanical engineering and maintenance work where repeatable fits are required.
Ring marking supports quick selection in tool cabinets and reduces mix ups during changeover.
Tool material is HSSE as stated in the title which supports wear resistance in continuous use.

Hạn chế

Not suitable for materials outside the hardness and toughness range intended for the tool grade.
Requires clean hole preparation and stable guidance, so it is not ideal for high throughput rough setups.

Các bước thực hiện

Confirm the thread system and nominal size in the product title against your drawing and mating part.
Prepare the hole with the correct drilling operation and remove burrs from the entry.
Select a suitable holder that keeps the tap aligned and provides controlled torque.
Apply a cutting fluid appropriate for the workpiece material and the selected tap type.
Start tapping with steady alignment and keep the axis straight to avoid flank damage.
Advance with controlled feed and clear chips from the flutes as needed without forcing the tool.
Stop at the required thread depth and withdraw the tap while maintaining alignment.
Clean the thread and verify fit with the mating part or with a suitable gauge.
Clean and protect the tool before storage to reduce corrosion and edge damage.

Phạm vi cung cấp

Scope of supply is defined by your order confirmation and delivery note.

Đặc tính kỹ thuật

Product type: Mũi taro máy
Thread system: Metric
Standard: DIN 376
Chamfer form: Form B
Identification: GREEN ring marking
Material: HSSE
Tolerance class: ISO 2 / 6H

Câu hỏi thường gặp (FAQ)

Which hole type is this tap geometry aimed at Choose the geometry based on hole type and chip transport needs, as indicated by the flute or form information in the product title. Where can you find geometry and application background for machine taps Use the technical information for guidance on tap types, geometry terms, and general application limits. Technical information machine taps as PDF What does Form B or Form C indicate Form letters describe the lead and entry geometry that influences how the tool starts and how load builds up. Use the form stated in the title as a selection cue aligned with your thread depth and material behaviour. Which tolerance class do you normally target with standard taps Standard taps are commonly used for the usual fit class of the thread system. If your drawing calls for a special fit, select a dedicated tolerance execution rather than a general purpose tap. How do you use ring markings for tool management Ring markings support quick sorting of taps by geometry or application focus in storage and on the shop floor. Use the marking as an identification aid and still confirm the full designation before use. Where can you find the colour ring identification overview Use the coloured ring document for the meaning of ring markings across the range. Technical information coloured ring identification as PDF Can you use one tap for both production and rework You can use a suitable tap for controlled production and for careful rework when the thread is not severely damaged. For heavy rework, consider whether the base material and the thread profile still support clean cutting. Where can you find additional product information and selection tables Use the product catalog for overview, selection tables, and related tooling. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metrisches ISO-Gewinde DIN 13
Tiêu chuẩn	DIN 376
Form	Form B
Vật liệu	HSS-E
Tolerance	ISO 2 /6H
Kích thước	M 30 x 3.5
Overall length (L1)	180 mm
Thread length (L2)	45 mm
Shank diameter (D2)	22 mm
Drive connector	Vierkant 18 mm
Mã hàng	35378
