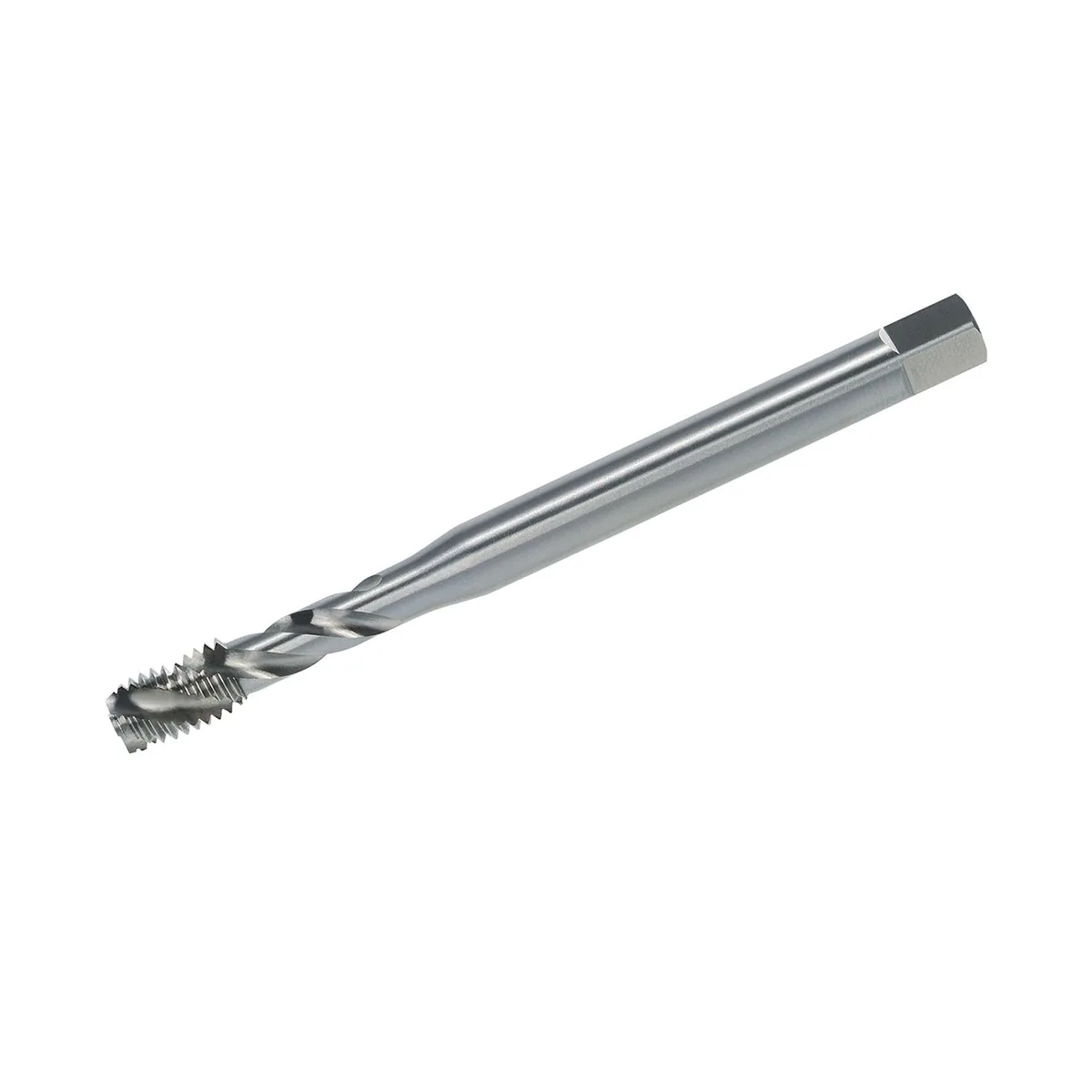

Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE 120 mm - M 6 x 1.0

Name: Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE 120 mm - M 6 x 1.0
Brand: VOLKEL
SKU: 32053
Price: 725000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE 120 mm - M 6 x 1.0 VÖLKEL, mã 32053, phù hợp cho gia công ren trong.

SKU: 32053

725.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE 120 mm - M 6 x 1.0

With Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE 120 mm - M 6 x 1.0 you cut an ren trong in a predrilled hole and keep the process stable through correct alignment and lubrication. The spiral flute supports chip transport out of the hole during tapping.

For reliable results, confirm the thread system, tolerance class, and hole type before you start and keep the tool square to the surface.

Ứng dụng

Cut ren trong in predrilled holes in mechanical engineering, maintenance, and metal fabrication.
Use for ISO metric threads as designated in the product name.
Prefer for lỗ bít where chip transport out of the hole is required.
Use a Mũi taro máy holder or tapping chuck that clamps the shank securely and supports straight entry.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Verify the exact designation, standard, and tolerance in the product name before you start.

Lợi ích

Simple inspection using a suitable screw or gauge after cleaning the thread.
Efficient chip transport supported by flute design when correct cutting fluid is used.
Consistent ren trong geometry when the tool is guided square to the surface.
Clear assignment to ISO metric threads through the designation in the product name.
Spiral flute supports chip evacuation from lỗ bít and reduces jamming risk.

Hạn chế

Not suitable for hard to machine materials without defined cutting data and stable machine rigidity.
Not intended for high output production where dedicated high performance tooling is required.

Các bước thực hiện

Confirm the thread designation in the product name matches the drawing and the mating screw.
Prepare a suitable predrilled hole and deburr the entry for clean lead in.
Clamp the tap in a stable Mũi taro máy holder or tapping chuck.
Align the spindle square to the surface so the tap starts without side load.
Apply suitable cutting fluid and start tapping with steady feed.
Monitor chip evacuation and reverse out to clear chips if resistance increases.
Back out completely and flush the thread to remove chips and fluid residues.
Inspect the result with a suitable screw or gauge before assembly.

Phạm vi cung cấp

The provided product data does not include an itemized scope of supply for Mũi taro máy DIN 371 Form C 35° Spiral Flute HSSE 120 mm - M 6 x 1.0. If your process requires accessories such as holders or cutting fluid, select them separately based on your setup.

Đặc tính kỹ thuật

Product type: Mũi taro máy
Thread designation: M 6 x 1.0
Thread system: ISO metric
Standard: DIN 371
Tool material: HSSE
Flute type: 35° spiral flute
Tolerance class: ISO 2 (6H)

Câu hỏi thường gặp (FAQ)

How do you select the correct variant for your drawing Match the thread designation in the product name to the drawing and the mating fastener. Confirm thread series, pitch, and class of fit before you start, especially for inch based threads. Is this tap suitable for lỗ bít or lỗ thông The suitability depends on flute geometry and lead form noted in the product name. Spiral flute execution is typically chosen for lỗ bít because chips are transported out of the hole. Where can you find technical background information for this tap type Use this PDF for technical notes, application limits, and terminology. Technical information machine taps as PDF Which tolerance class do you typically achieve The typical tolerance class for this execution is ISO 2 (6H) when the process is set up correctly and the hole preparation matches the thread system. Do you need cutting fluid Yes, use suitable cutting fluid for the material to reduce friction and control chip formation. Keep lubrication consistent from start to finish and clean the tool after use. Which holder should you use Use a holder that clamps the shank securely and supports straight entry. In manual work this is typically a Tay quay taro, and in machines a tapping chuck or a suitable collet holder. Where can you find the VÖLKEL catalog for additional variants and technical context Use the catalog for the full program and selection guidance. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	DIN 371
Form	Form C
Vật liệu	HSSE
Tolerance	ISO2 (6H)
Kích thước	M 6 x 1.0
Overall length (L1)	120 mm
Thread length (L2)	10 mm
Core hole diameter (D1)	5.0 mm
Shank diameter (D2)	6.0 mm
Drive connector	4.9 mm
EAN	4022835320531
Mã hàng	32053
Type of flute	35° Spiral Flute
Phạm vi ứng dụng	for blind holes
Chuẩn ren	DIN 13
