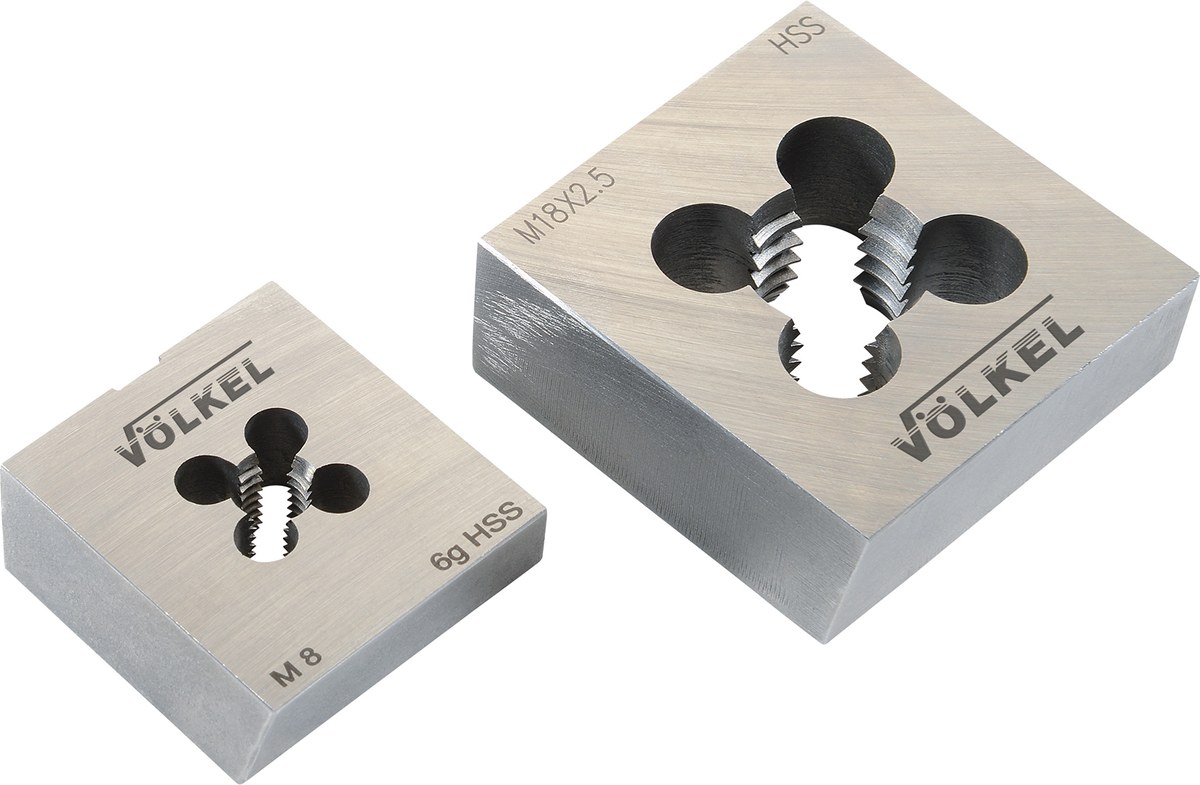

Square Die HSS - G (BSP) 1/4 x 19

• Threading Tool use in repair and small batch work, including service workshops and mechanical engineering.
• Thread production on prepared holes or blanks where alignment is controlled by a holder, guide, or machine spindle.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
• Use suitable lubrication and remove chips regularly so cutting edges do not pack up.
• Thread system context: match the tool to the BSPP specification stated on the part or drawing.

Lưu ý Clean threads and tools before use, apply suitable lubrication for cutting operations, and stop if resistance rises sharply.

• Direct selection by thread designation such as BSPP when stated reduces setup mistakes.
• Suitable for workshop processes where alignment and controlled engagement are practical priorities.
• Supports consistent thread quality when you use steady feed and lubrication.
• Works well for maintenance tasks where parts must be reworked to the drawing requirement.

• Not suitable for materials or hardness outside the typical range for the named tool material and execution.
• Not intended for high performance production without a validated process and rigid machine conditions.

1. Inspect the blank and remove burrs so the die can start square to the axis.

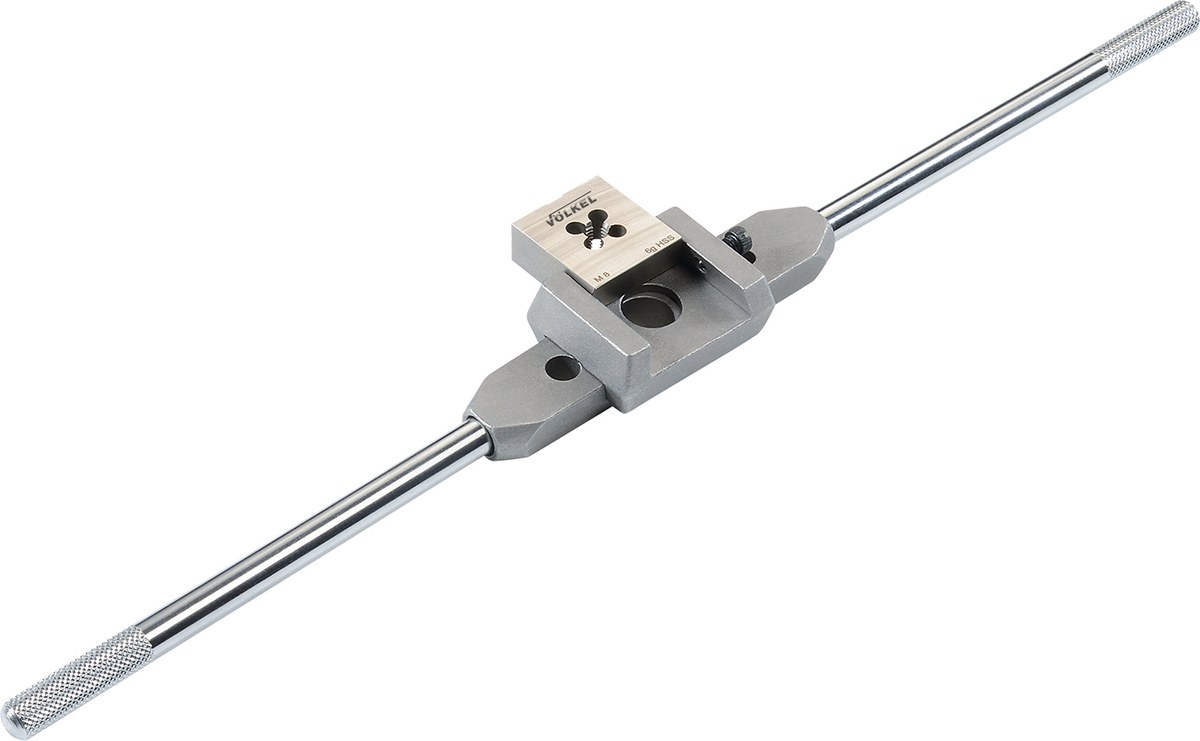

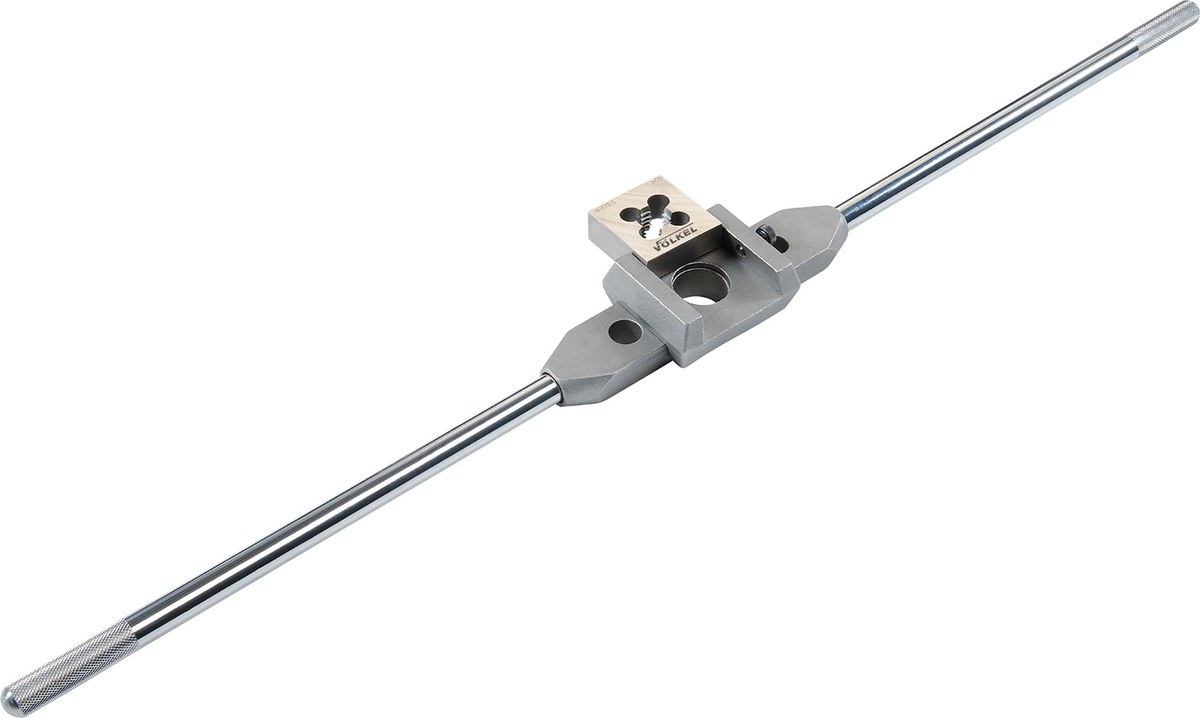

2. Mount the die in a suitable die holder and secure it so it cannot tilt under load.
3. Align the holder to the workpiece axis and apply suitable cutting Chất bôi trơn cắt gọt ren.
4. Start the thread with steady rotation and maintain axial alignment without side force.
5. Reverse briefly to clear chips from the cutting edges, then continue with steady feed.
6. Continue until required engagement is reached, then back the die off fully.
7. Clean the thread and the die, then protect the tool from corrosion before storage.

• 1 chiếc Square Die HSS - G (BSP) 1/4 x 19

• Product type: Threading Tool
• Thread designation: BSPP
• Tool material or execution: HSS
• Connection context: Pipe thread

How do you decide between a Mũi taro ren tay (tạo ren trong) and a Mũi taro máy for this thread? You choose by the driving method and the stability of the setup. Mũi taro ren tay (tạo ren trong) support controlled manual work, while machine taps support guided or powered driving with stable alignment. How do you translate inch based thread notation to metric workshop references? Use this conversion table for fast unit assignment in daily work: Inch to mm conversion table as PDF What do you check before you start cutting the thread? Confirm the thread designation, the hole preparation, and the workpiece material. Keep alignment square to the axis and plan lubrication and chip evacuation. How do you reduce the risk of a tapered or oversize thread? Maintain alignment, avoid side load, and use steady feed. Clean chips from the cutting geometry and verify the first part against the specification. Where do you find the matching catalog for additional variants and reference data? Use the catalog for additional information and product family context: VD 23 catalog as PDF How do you choose the correct drill preparation without guessing values? Use a drill size chart that matches the thread system and the tool type. For inch based threads, confirm that the notation is interpreted correctly before drilling.
