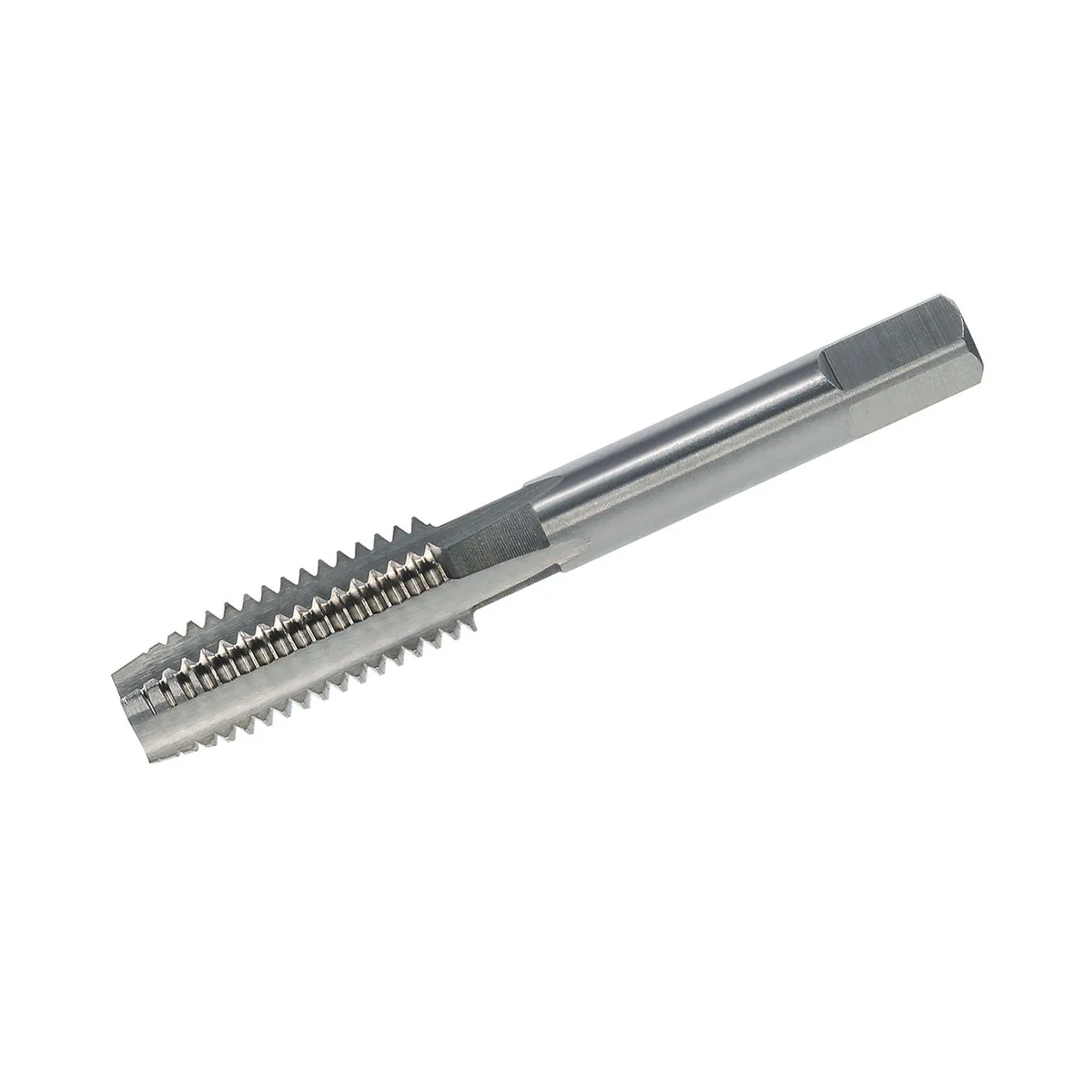

Mũi taro ren tay (tạo ren trong) DIN 352 Form D HSS-G non-serial form - M 39 x 4.0

Name: Mũi taro ren tay (tạo ren trong) DIN 352 Form D HSS-G non-serial form - M 39 x 4.0
Brand: VOLKEL
SKU: 27684-2
Price: 3033000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro ren tay (tạo ren trong) DIN 352 Form D HSS-G non-serial form - M 39 x 4.0 VÖLKEL, mã 27684-2, phù hợp cho gia công ren trong.

SKU: 27684-2

3.033.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro ren tay (tạo ren trong) DIN 352 Form D HSS-G non-serial form - M 39 x 4.0

This Mũi taro ren tay (tạo ren trong) lets you cut ren trong manually in common metalworking materials when preparation and alignment are correct. The execution follows DIN 352.

Select the chamfer form to match lead-in requirements and use a stable Tay quay taro to keep the tool square to the hole axis. Form D defines the chamfer and lead-in behavior.

Ứng dụng

Cut ren trong manually in prepared holes during repair and workshop work.
Use a suitable Tay quay taro to keep the tool aligned and to control torque.
Process: manual driving or assisted driving depending on your holder and machine setup.
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition.

Lưu ý Use cutting fluid suited to the workpiece material and keep the tool clean and protected after use.

Lợi ích

Fits typical tap holding systems appropriate to the tool type
Makes selection easier by referencing standard, form, and thread designation
Supports predictable lead-in when you align the tool to the hole axis
Keeps tool handling straightforward during tool change and inspection
Provides a defined chamfer form for consistent thread start

Hạn chế

Limited suitability for very hard materials unless a dedicated execution is specified
Not suitable for high-performance machine tapping without controlled guidance

Các bước thực hiện

Confirm the thread designation and ensure the hole is prepared and deburred.
Clamp the workpiece so the hole axis stays stable while you tap.
Mount the tap in a suitable Tay quay taro and keep the tool square to the hole.
Apply cutting fluid suited to the workpiece material.
Start the thread with steady torque while maintaining alignment.
Reverse as needed to clear chips and reduce cutting load.
Continue until the required thread depth is reached, then reverse out fully.
Clean the thread and the tool, then protect the cutting edges for storage.

Phạm vi cung cấp

Scope of supply is not specified in the provided product data for this item.

Đặc tính kỹ thuật

Tool type: Mũi taro ren tay (tạo ren trong)
Standard: DIN 352
Chamfer form: Form D
Tool material: HSS-G
Thread system: ISO metric
Tolerance class: 6H

Câu hỏi thường gặp (FAQ)

When should you use a Mũi taro ren tay (tạo ren trong) instead of a Mũi taro máy Use a Mũi taro ren tay (tạo ren trong) when you need manual control in repair or assembly work, or when machine access is limited and you can keep the tool aligned with a Tay quay taro. What tool do you use to drive the tap Use a Tay quay taro that holds the square drive securely and lets you maintain alignment to the hole axis. What preparation is required before you tap the thread Prepare the core hole to the correct size for the thread designation, remove burrs, and add a small lead-in chamfer so the tap can start without side load. How do you control chips and cutting fluid during tapping Use cutting fluid suited to the workpiece material and clear chips regularly, especially in deeper holes or tougher materials, to prevent chip packing and tool overload. Where can you find additional technical information for this execution Use the following PDF for reference on hand tapping handling: Technical information Mũi taro ren tay (tạo ren trong) as PDF How do you reduce risk of tap breakage Keep alignment stable, avoid side load at entry, and stop if torque rises sharply so you can inspect hole preparation, lubrication, and chip evacuation. Where can you find more product and application information in the VÖLKEL catalog Use this catalog for additional details and related items: VD 23 catalog as PDF How do you inspect the thread after tapping Check that the thread is clean, that the start is not damaged, and that the functional fit matches the mating component used in your assembly.

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	DIN 352
Form	Form D
Vật liệu	HSS-G
Tolerance	ISO2 (6H)
Kích thước	M 39 x 4.0
Overall length (L1)	150 mm
Thread length (L2)	63 mm
Core hole diameter (D1)	35.0 mm
Shank diameter (D2)	32.0 mm
Drive connector	24.0 mm
Mã hàng	27684-2
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	DIN 13
