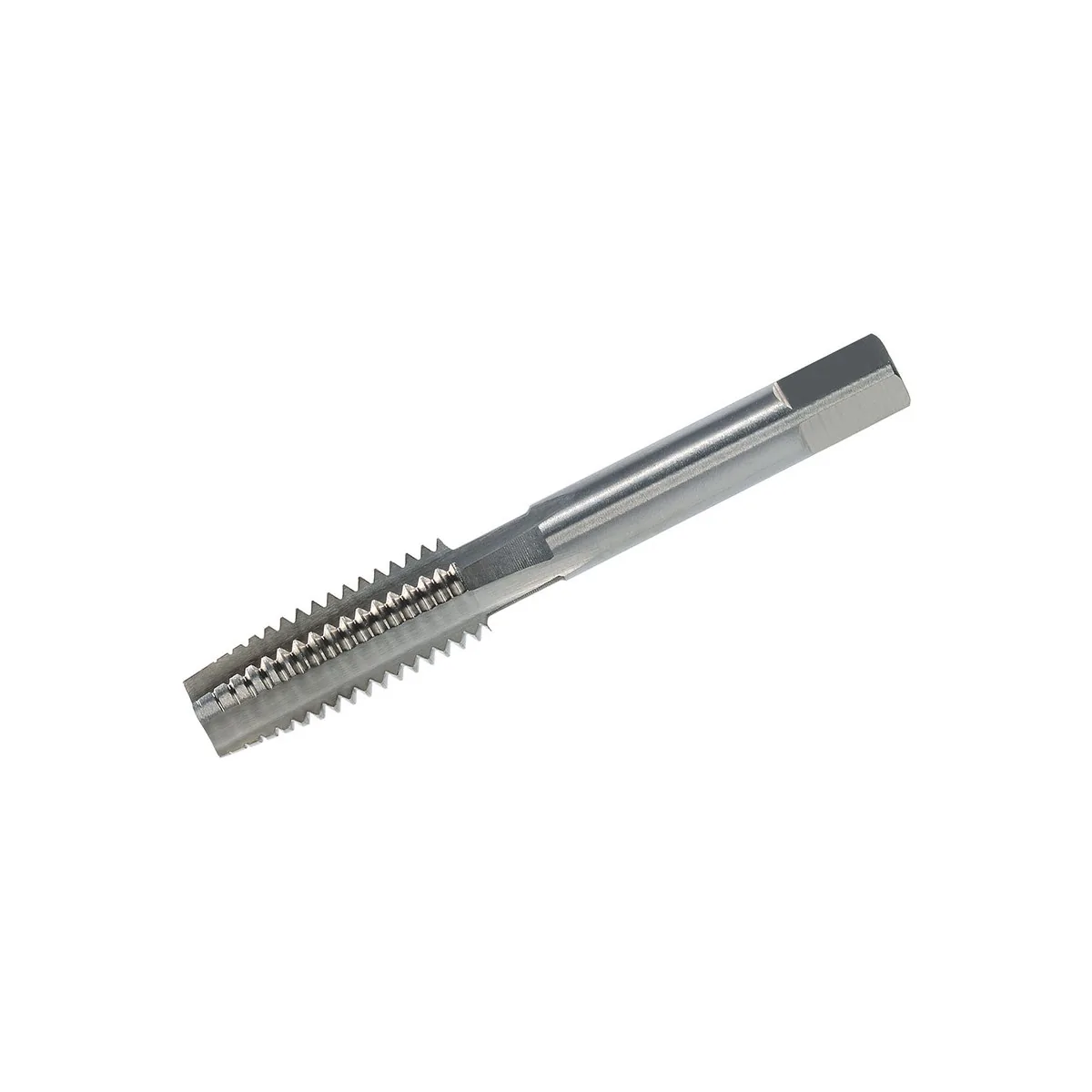

Mũi taro ren tay (tạo ren trong) DIN 352 Form A HSS-G non-serial form - M 22 x 2.5

Name: Mũi taro ren tay (tạo ren trong) DIN 352 Form A HSS-G non-serial form - M 22 x 2.5
Brand: VOLKEL
SKU: 27670-1
Price: 647000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro ren tay (tạo ren trong) DIN 352 Form A HSS-G non-serial form - M 22 x 2.5 VÖLKEL, mã 27670-1, phù hợp cho gia công ren trong.

SKU: 27670-1

647.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro ren tay (tạo ren trong) DIN 352 Form A HSS-G non-serial form - M 22 x 2.5

Mũi taro ren tay (tạo ren trong) DIN 352 Form A HSS-G non-serial form - M 22 x 2.5 is intended for practical thread production where you need repeatable results in a workshop or on site.

Selection is driven by thread standard, material group, and the flute geometry shown in the product name, especially when you work in lỗ bít.

Ứng dụng

Cut ren trong in predrilled holes in mechanical engineering, maintenance, and metal fabrication.
Use for ISO metric threads as designated in the product name.
Use for lỗ bít or lỗ thông based on lead form and flute geometry.
Use a Tay quay taro that clamps the shank securely and supports straight entry.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Verify the exact designation, standard, and tolerance in the product name before you start.

Lợi ích

Stepwise load distribution when you work with a set and follow the correct sequence.
Clear assignment to ISO metric threads through the designation in the product name.
Simple inspection using a suitable screw or gauge after cleaning the thread.
Practical for repair and fit adjustment work in service environments.
Good control during manual tapping when you keep the tap aligned and lubricated.

Hạn chế

Not suitable for hard to machine materials without defined cutting data and stable machine rigidity.
Not intended for high output production where dedicated high performance tooling is required.

Các bước thực hiện

Confirm the thread designation in the product name matches the drawing and the mating screw.
Prepare a suitable predrilled hole and deburr the entry for clean lead in.
Clamp the tap in a stable Mũi taro máy holder or tapping chuck.
Align the spindle square to the surface so the tap starts without side load.
Apply suitable cutting fluid and start tapping with steady feed.
Monitor chip evacuation and reverse out to clear chips if resistance increases.
Back out completely and flush the thread to remove chips and fluid residues.
Inspect the result with a suitable screw or gauge before assembly.

Phạm vi cung cấp

The provided product data does not include an itemized scope of supply for Mũi taro ren tay (tạo ren trong) DIN 352 Form A HSS-G non-serial form - M 22 x 2.5. If your process requires accessories such as holders or cutting fluid, select them separately based on your setup.

Đặc tính kỹ thuật

Product type: Mũi taro ren tay (tạo ren trong)
Thread designation: M 22 x 2.5
Thread system: ISO metric
Standard: DIN 352
Tool material: HSS-G, HSS
Surface finish: ground
Tolerance class: ISO 2 (6H)

Câu hỏi thường gặp (FAQ)

How do you select the correct variant for your drawing Match the thread designation in the product name to the drawing and the mating fastener. Confirm thread series, pitch, and class of fit before you start, especially for inch based threads. Is this tap suitable for lỗ bít or lỗ thông The suitability depends on flute geometry and lead form noted in the product name. Spiral flute execution is typically chosen for lỗ bít because chips are transported out of the hole. Where can you find technical background information for this tap type Use this PDF for technical notes, application limits, and terminology. Technical information Mũi taro ren tay (tạo ren trong) as PDF Which tolerance class do you typically achieve The typical tolerance class for this execution is ISO 2 (6H) when the process is set up correctly and the hole preparation matches the thread system. Do you need cutting fluid Yes, use suitable cutting fluid for the material to reduce friction and control chip formation. Keep lubrication consistent from start to finish and clean the tool after use. Which holder should you use Use a holder that clamps the shank securely and supports straight entry. In manual work this is typically a Tay quay taro, and in machines a tapping chuck or a suitable collet holder. Where can you find the VÖLKEL catalog for additional variants and technical context Use the catalog for the full program and selection guidance. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	DIN 352
Form	Form A
Vật liệu	HSS-G
Tolerance	ISO2 (6H)
Kích thước	M 22 x 2.5
Overall length (L1)	100 mm
Thread length (L2)	40 mm
Core hole diameter (D1)	19.5 mm
Shank diameter (D2)	18.0 mm
Drive connector	14.5 mm
Mã hàng	27670-1
Type of flute	straight fluted
Phạm vi ứng dụng	for through holes
Chuẩn ren	DIN 13
