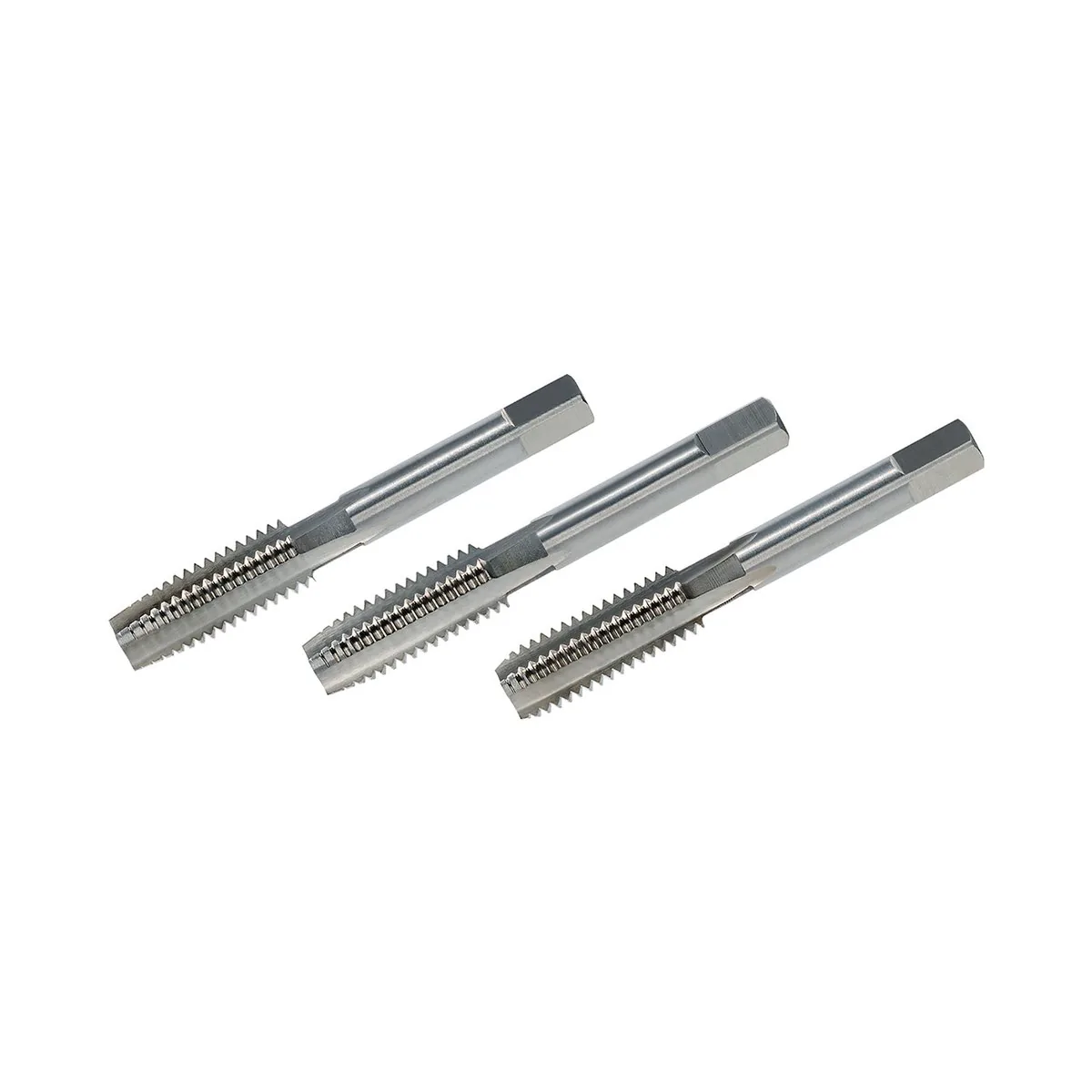

Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G non-serial form - M 19 x 2.5

• Cut ren trong in predrilled holes in mechanical engineering, maintenance, and metal fabrication.
• Use for ISO metric threads as designated in the product name.
• Use for lỗ bít or lỗ thông based on lead form and flute geometry.
• Use a Tay quay taro that clamps the shank securely and supports straight entry.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Verify the exact designation, standard, and tolerance in the product name before you start.

• Clear assignment to ISO metric threads through the designation in the product name.
• Practical for repair and fit adjustment work in service environments.
• Good control during manual tapping when you keep the tap aligned and lubricated.
• Stepwise load distribution when you work with a set and follow the correct sequence.
• Simple inspection using a suitable screw or gauge after cleaning the thread.

• Not suitable for hard to machine materials without defined cutting data and stable machine rigidity.
• Not intended for high output production where dedicated high performance tooling is required.

1. Secure the workpiece so the hole axis stays stable during manual force.
2. Select the correct tap from the set and confirm the thread designation on the tool.
3. Apply suitable cutting fluid to the tap and the hole entry.
4. Start the tap square to the surface and turn with controlled hand force.
5. Reverse periodically to clear chips and reduce load on the cutting edges.
6. Continue with the next tap in the sequence until the required depth is reached.
7. Back the tool out fully and clean the thread with a brush and fluid.
8. Verify the thread with the mating screw and rework only if required.

The provided product data does not include an itemized scope of supply for Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G non-serial form - M 19 x 2.5. If your process requires accessories such as holders or cutting fluid, select them separately based on your setup.

• Product type: Mũi taro ren tay (tạo ren trong) set
• Thread designation: M 19 x 2.5
• Thread system: ISO metric
• Standard: DIN 352
• Tool material: HSS-G, HSS
• Surface finish: ground
• Tolerance class: ISO 2 (6H)
