Precision Dưỡng kiểm ren trong Tol. ISO1 (4H) metric STI-Thread - M 6 x 1.0

Name: Precision Dưỡng kiểm ren trong Tol. ISO1 (4H) metric STI-Thread - M 6 x 1.0
Brand: VOLKEL
SKU: 19607
Price: 1440000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá) • Đã bán 0

Precision Dưỡng kiểm ren trong Tol. ISO1 (4H) metric STI-Thread - M 6 x 1.0 VÖLKEL, mã 19607, phù hợp cho kiểm tra độ chính xác của ren.

SKU: 19607

1.440.000 đ

Trạng thái kho: Hết hàng

Giá đã bao gồm VAT

Mô tả

Precision Dưỡng kiểm ren trong Tol. ISO1 (4H) metric STI-Thread - M 6 x 1.0

This thread gauge supports fast, repeatable inspection of an ren trong on the shop floor. It helps you confirm functional thread acceptance without measuring pitch diameter directly.

For reliable decisions, use consistent handling and avoid forcing the gauge past resistance. M indicates an ISO metric thread, where you match nominal size and pitch to the mating thread.

Ứng dụng

Inspect ren trong during setup, in process checks, or final inspection.
Use it for acceptance decisions on threaded holes before assembly or coating steps.
Apply the gauge by hand to evaluate fit and detect damage such as burrs or dents.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý For consistent results, deburr the entry and keep the cutting area clean during use.

Lợi ích

Fast pass fail decision without complex measurement equipment
Supports stable process control in serial production and incoming inspection
Helps identify handling damage such as burrs, dents, or thread pull out
Reduces assembly issues by filtering non conforming threads early

Hạn chế

Not suitable for determining the exact deviation of thread geometry; it is a limit check.
Requires clean threads and careful hand feel; forcing can damage the gauge and the part.

Các bước thực hiện

Clean the threaded hole and remove oil, chips, and burrs from the entry.
Visually check the thread for dents, plating build up, or deformation.
Identify the GO and NO GO sides when the gauge has separate ends.

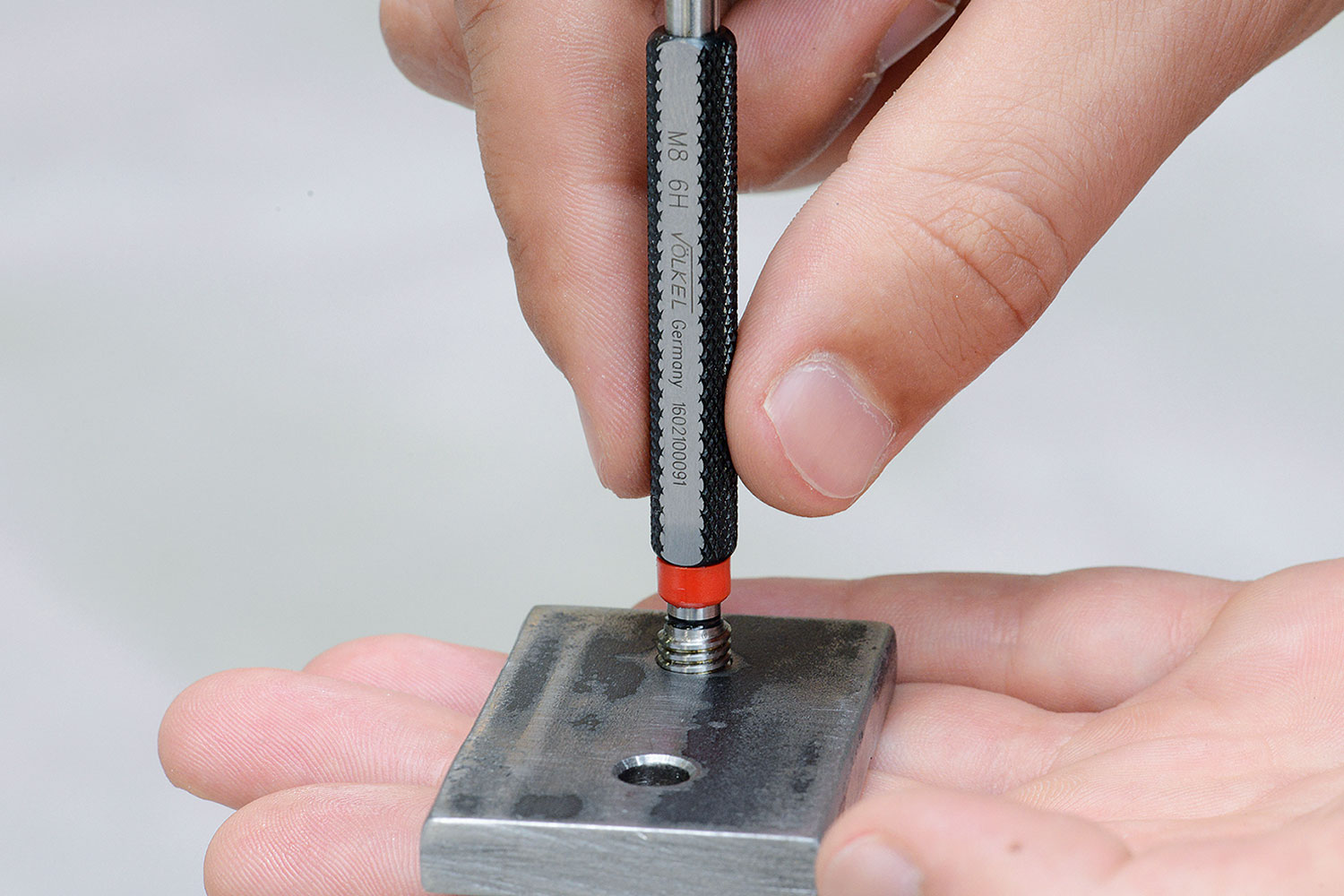

Insert the GO side by hand and turn with light finger force until it seats or stops.
Try the NO GO side by hand and stop as soon as resistance increases.
If the feel is inconsistent, clean again and repeat the check with the same handling.
Record the result and protect the gauge with a light corrosion protection film after use.

Phạm vi cung cấp

1 chiếc Precision Dưỡng kiểm ren trong Tol. ISO1 (4H) metric STI-Thread - M 6 x 1.0

Đặc tính kỹ thuật

Type: Dưỡng kiểm ren trong for ren trong
Tolerance: ISO1
Thread system: M

Câu hỏi thường gặp (FAQ)

How do you use this gauge without damaging the thread?: Clean the thread first and apply the gauge by hand only. Stop at first abnormal resistance and investigate contamination or burrs before you decide on acceptance.
What does the designation M 6 x 1.0 tell you?: It states the exact thread form and size that the gauge is made for, including pitch information when it is part of the designation. Use only on matching thread designations.
What does tolerance ISO1 mean in practice?: It indicates the tolerance zone that the gauge is manufactured for. Use the gauge together with the correct drawing and standard so the acceptance decision matches your specification.
Where can you find catalog information for this product family?: Use the product catalog for overview tables and selection context. VG 23 catalog as PDF
How do you handle borderline results?: Repeat the check after cleaning and keep handling consistent. If the feel changes between checks, inspect the thread for damage, plating build up, or deformation.
How do you store and protect the gauge?: Keep it clean and lightly protected against corrosion. Store it in a protective case and avoid contact with other hardened tools to prevent nicks.

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric STI-Thread
Tolerance	ISO1 (4H)
Kích thước	M 6 x 1.0
EAN	4022835196075
Mã hàng	19607
Chuẩn ren	DIN 13
