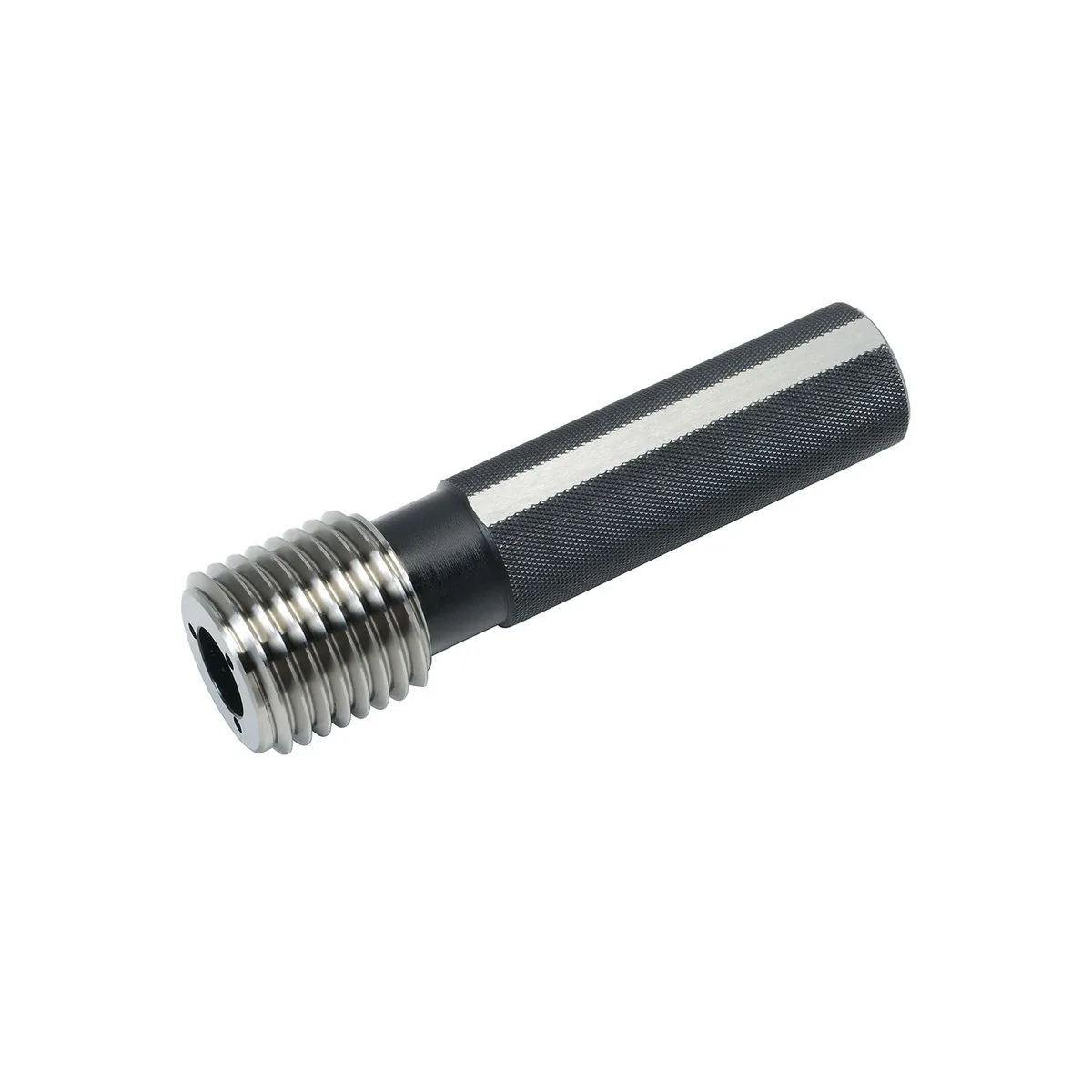

Dưỡng kiểm ren trong GO chính xác (Tol. 6H) - M 56 x 5.5

Name: Dưỡng kiểm ren trong GO chính xác (Tol. 6H) - M 56 x 5.5
Brand: VOLKEL
SKU: 16594
Price: 4623000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Dưỡng kiểm ren trong GO chính xác (Tol. 6H) - M 56 x 5.5 VÖLKEL, mã 16594, phù hợp cho kiểm tra độ chính xác của ren.

SKU: 16594

4.623.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Dưỡng kiểm ren trong GO chính xác (Tol. 6H) - M 56 x 5.5

You use this gauge to check an ren trong against defined limits during setup and inspection. You can use it to separate acceptable from non acceptable threads quickly in serial checks.

Cleanliness of the thread and correct hand feel are critical so that the gauge result reflects the part and not contamination. M indicates an ISO metric thread, where you match nominal size and pitch to the mating thread. GO and NO GO indicate limit gauging: the GO side should enter, the NO GO side should not enter beyond the specified check.

Ứng dụng

Inspect ren trong during setup, in process checks, or final inspection.
Use it for acceptance decisions on threaded holes before assembly or coating steps.
Apply the gauge by hand to evaluate fit and detect damage such as burrs or dents.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý For consistent results, deburr the entry and keep the cutting area clean during use.

Lợi ích

Fast pass fail decision without complex measurement equipment
Supports stable process control in serial production and incoming inspection
Helps identify handling damage such as burrs, dents, or thread pull out
Reduces assembly issues by filtering non conforming threads early

Hạn chế

Not suitable for determining the exact deviation of thread geometry; it is a limit check.
Requires clean threads and careful hand feel; forcing can damage the gauge and the part.

Các bước thực hiện

Clean the threaded hole and remove oil, chips, and burrs from the entry.
Visually check the thread for dents, plating build up, or deformation.
Identify the GO and NO GO sides when the gauge has separate ends.
Insert the GO side by hand and turn with light finger force until it seats or stops.
Try the NO GO side by hand and stop as soon as resistance increases.
If the feel is inconsistent, clean again and repeat the check with the same handling.
Record the result and protect the gauge with a light corrosion protection film after use.

Phạm vi cung cấp

1 chiếc Dưỡng kiểm ren trong GO chính xác (Tol. 6H) - M 56 x 5.5

Đặc tính kỹ thuật

Type: Dưỡng kiểm ren trong for ren trong
Gauging side: GO
Tolerance: 6H
Thread system: M

Câu hỏi thường gặp (FAQ)

How do you use this gauge without damaging the thread? Clean the thread first and apply the gauge by hand only. Stop at first abnormal resistance and investigate contamination or burrs before you decide on acceptance. What do GO and NO GO mean on a thread gauge? They represent limit gauging. The GO side verifies minimum material condition and functional entry, while the NO GO side prevents acceptance of an oversize thread condition. What does the designation M 56 x 5.5 tell you? It states the exact thread form and size that the gauge is made for, including pitch information when it is part of the designation. Use only on matching thread designations. Where can you find catalog information for this product family? Use the product catalog for overview tables and selection context. VG 23 catalog as PDF What does tolerance 6H mean in practice? It indicates the tolerance zone that the gauge is manufactured for. Use the gauge together with the correct drawing and standard so the acceptance decision matches your specification. How do you handle borderline results? Repeat the check after cleaning and keep handling consistent. If the feel changes between checks, inspect the thread for damage, plating build up, or deformation.
