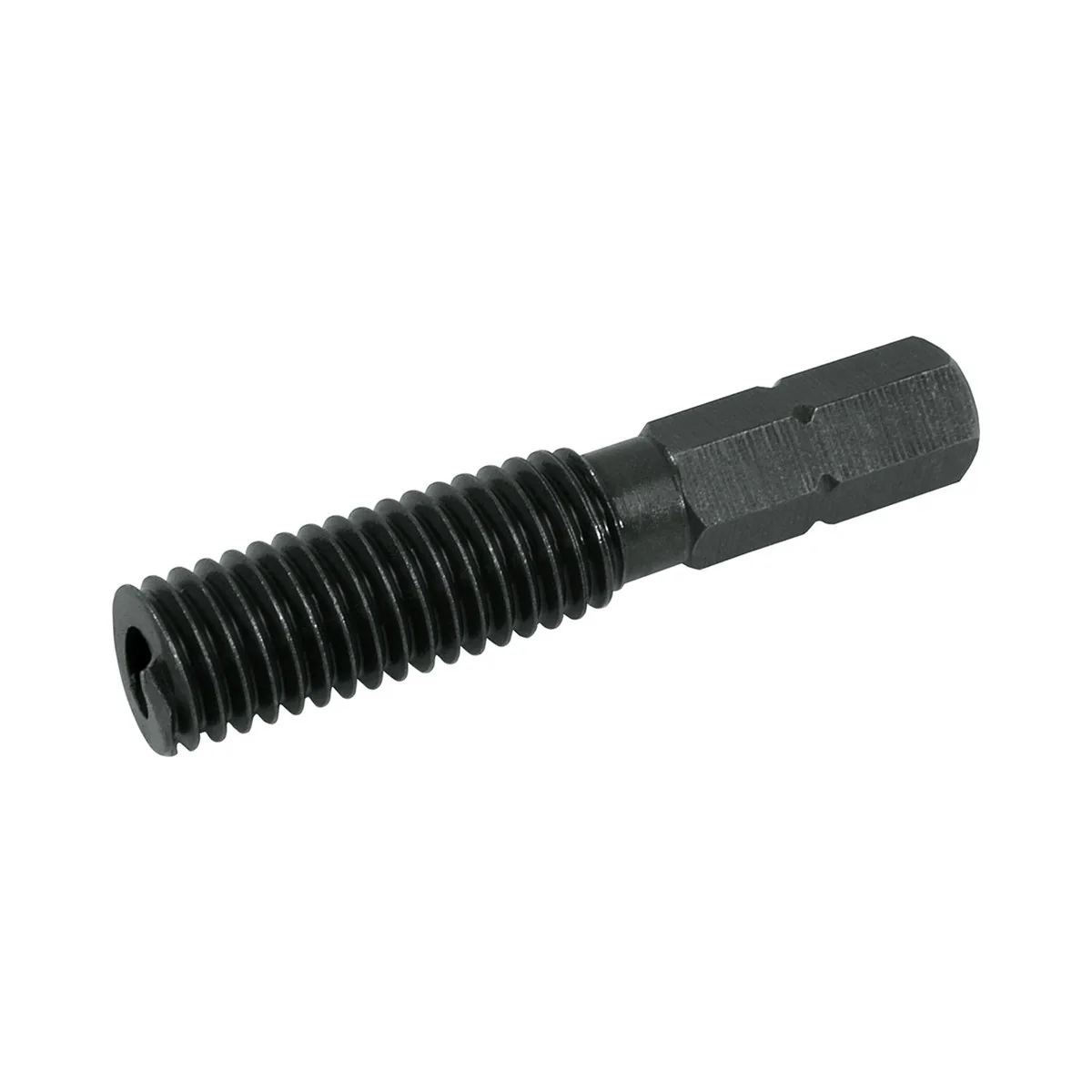

V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 12 x 1,25

• Installation of coil-type thread inserts M12 × 1.25
• Suitable for repair, maintenance, and series assembly
• Works with aluminium, thép, and other materials
• Compatible with V-COIL systems and equivalent inserts

How to install your insert correctly:

• Prepare and clean the base thread according to the specifications.
• Screw the insert fully onto the tool.
• Align the tool at the thread entrance and rotate using your 1/4" drive tool.
• Remove the tool once the insert is fully seated.

1. Preparation: Drill and tap the base hole, remove chips and oil residue.
2. Mounting: Screw the insert onto the tool.
3. Alignment: Position the tool straight at the thread entrance.
4. Installation: Turn with steady torque until the insert is seated.
5. Finishing: Remove the tool and check the insert's position.

• Nominal size: M12 × 1.25
• Drive connector: 1/4" square
• Compatibility: V-COIL inserts and equivalents
• Material: Precision thép
• Article number: 08191
• EAN: 4022835081913

1. Which inserts is this tool suitable for?

It is designed for coil-type thread inserts M12 × 1.25compatible with V-COIL and equivalent systems.

2. Can I use it manually?

Yes, but using a 1/4" drive tool provides more consistent results.

3. Can this tool remove inserts?

số This tool is for installation only. You need the special extraction tool to remove inserts.

4. Do I need to break off the insert's tang?

Yes, if the insert has a tang, it must be broken off after installation using the appropriate tool.

5. What if the insert is not straight?

Check the base thread and cleanliness. If everything is fine, remove the insert and install a new one.

6. Can I work in tight spaces?

Yes, its compact design allows access to confined areas.

7. How do I clean the thread before installation?

Use compressed air, a thread brush, and a lint-free cloth.

8. How do I know the insert is fully installed?

It should sit flush or slightly below the surface.

• 1× V-COIL Dụng cụ lắp ren cấy, 1/4", M12 × 1.25 (Art.-số 08191)
