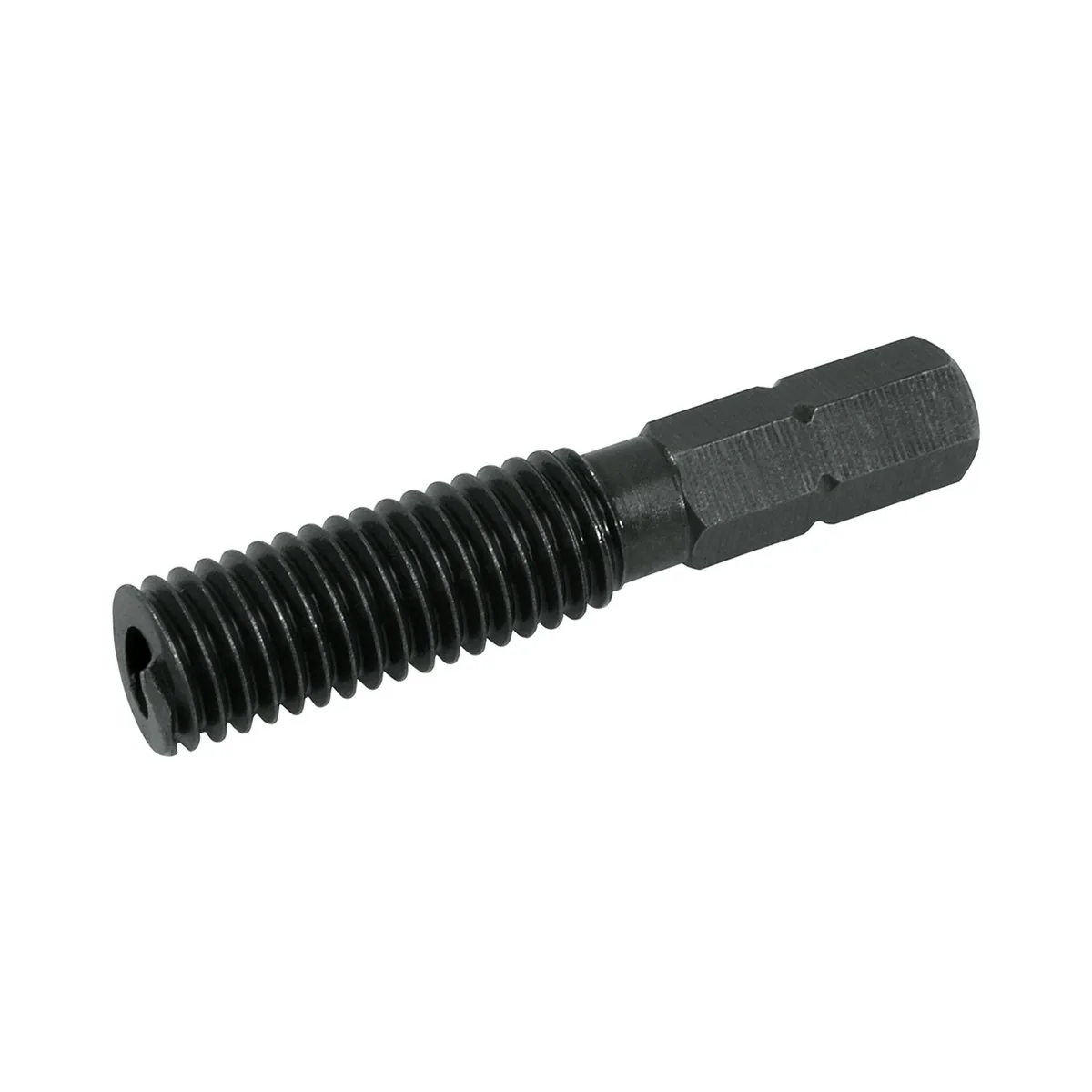

V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 10 x 1.25

• for inserting a Ren cấy V-COIL into a freshly cut thread
• compatible with V-COIL and many other Ren cấy V-COIL
• optimized for mechanical use with a 1/4" drive
• ideal for repair, maintenance and series production

• screw the thread insert onto the Dụng cụ lắp ren cấy
• turn the insert into the prepared thread hole
• install it to the required depth

1. Prepare: Cut the new thread and clean it thoroughly (remove chips, oil, dirt).
2. Mount: Screw the Ren cấy V-COIL fully onto the V-COIL Dụng cụ lắp ren cấy.
3. Align: Position the tool straight onto the thread entry.
4. Insert: Use your 1/4" drive and turn clockwise until the insert is properly seated.
5. Finish: Remove the tool – the insert is securely positioned.

• Standard: Factory standard
• Nominal size: M 10 × 1.25
• Drive: 1/4"
• Application size: M 10 × 1.25
• EAN: 4022835081906
• Item number: 08190

1. Which inserts is this tool compatible with?

The tool is suitable for Ren cấy V-COIL in size M 10 × 1.25 – compatible with V-COIL and many other manufacturers.

2. Can this tool be used manually?

Yes, manual use is possible, but it performs best with a mechanical 1/4" drive (ratchet, torque tool, etc.).

3. Can I remove old inserts with this tool?

No, this tool is designed exclusively for installation. Removal requires a special extraction tool.

4. Do I have to break off the tang after installation?

For most Ren cấy V-COIL, yes. The tang should be broken off using the appropriate tang-break tool.

5. What if the insert is installed at an angle?

It should be removed and replaced with a fresh insert to avoid thread damage.

6. Can I set the installation depth individually?

Yes, the depth can be controlled precisely by how far you screw in the insert.

• 1× V-COIL Dụng cụ lắp ren cấy, 1/4", M 10 × 1.25 (Item số 08190)
