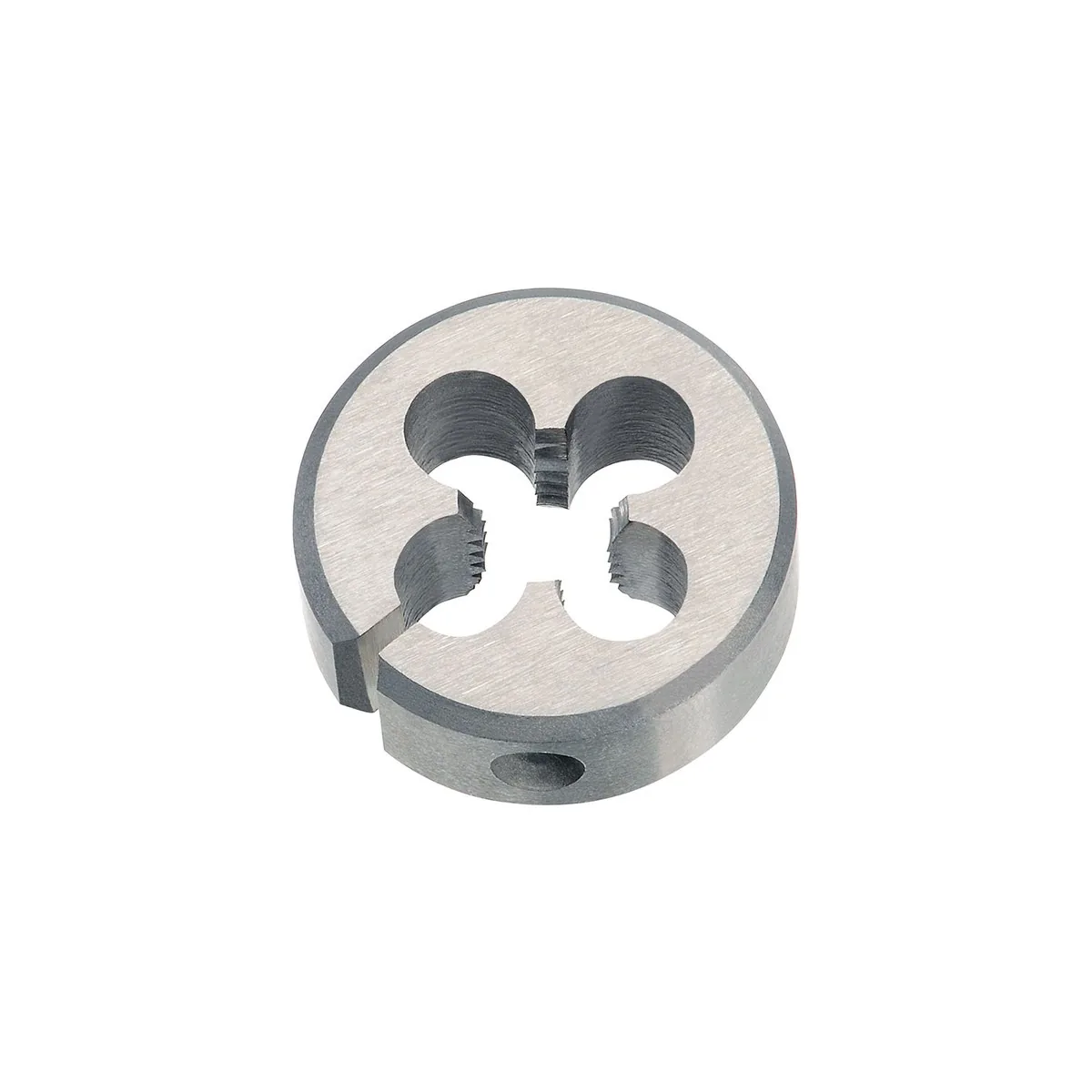

Bàn ren ngoài (tạo ren ngoài) BS 1127; 1950 (o/d 1.1/2) HSS - UNF 1/2 x 20

• dùng cho ứng dụng thông dụng
• For machinable (non-abrasive) materials up to 800 N/mm²
• thép không hợp kim và thép hợp kim thấp

Advantages:

• Precision UNF ren ngoài according to ANSI B 1.1
• HSS design for high tool life and reliable cutting
• Optimised chip breaking via manual forward/back cut technique
• Compatible with die holders of o/d 1.1/2
• Technical Information (PDF)

1. Preparation: Machine workpiece to core diameter, create a 30-45° chamfer and clamp securely.
2. Alignment: Insert the die (o/d 1.1/2) flat and centred in the holder, cutting face forward.
3. Cutting: Apply cutting oil; rotate approx. 1 turn forward, then ¼ turn back to break the chip; keep the die perpendicular.
4. Finishing: Cut to the required thread length, reverse the die, remove chips.
5. Check: Verify with a matching UNF nut or thread gauge; clean the thread surface.

• Thread Type: Unified Fine Thread UNF (ANSI B 1.1)
• Standard: BS 1127; 1950
• Material: HSS
• Nominal size: UNF 1/2 x 20
• Overall Length (L1): ½ die height
• Outside Diameter: 1.1/2 o/d
• EAN: 4022835830429
• Article Number: 83042

• 1× Bàn ren ngoài (tạo ren ngoài) HSS – UNF 1/2 x 20 (o/d 1.1/2)

Which materials can I use this die for?
Suitable for non-abrasive materials up to 800 N/mm² such as thép không hợp kim và thép hợp kim thấp.

What standards apply?
Thread according to ANSI B 1.1 (UNF); die according to BS 1127; 1950.

What holder do I need?
A die holder for outside diameter 1.1/2 (o/d).

Should I use cutting oil?
Yes – lubrication improves cutting performance, surface finish, and tool life.

Where can I find detailed technical data?
See the Technical Information PDF.
