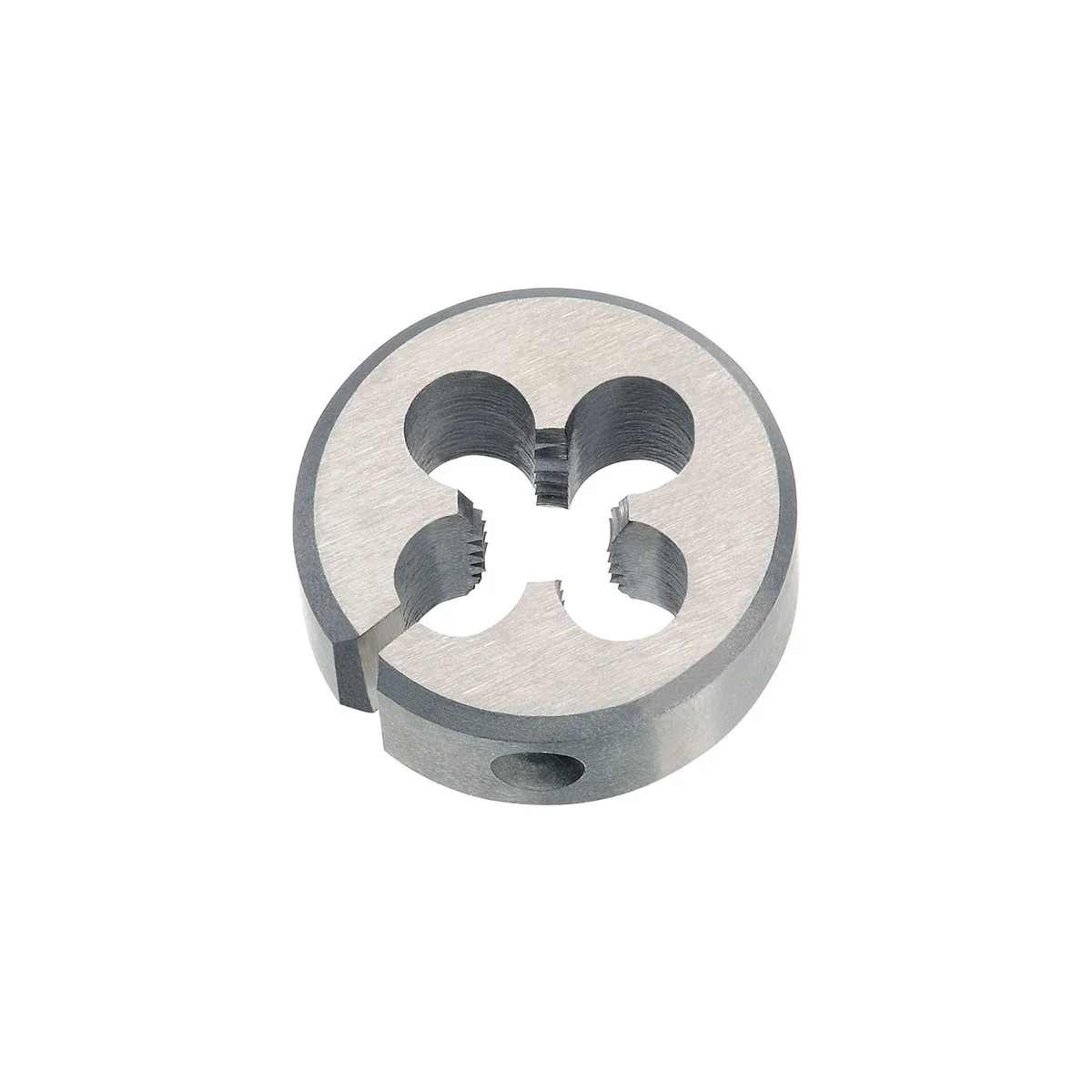

Bàn ren ngoài (tạo ren ngoài) BS 1127; 1950 (o/d 1.5/16) HSS - UNF 9/16 x 18

• dùng cho ứng dụng thông dụng
• For machinable, non-abrasive materials up to 800 N/mm²
• thép không hợp kim và thép hợp kim thấp

Advantages:

• Accurate UNF ren ngoài according to ANSI B 1.1
• HSS design ensures long tool life and cutting stability
• Optimized chip breaking using forward/backward cutting motion
• Fits die holders with o/d 1.5/16
• Technical Information (PDF)

1. Preparation: Machine workpiece to core diameter, add a 30–45° chamfer, and clamp securely.
2. Alignment: Place the die (o/d 1.5/16) flat and centered in the die holder, cutting side facing forward.
3. Cutting: Apply cutting oil; rotate approximately 1 turn forward and 1/4 turn backward to break the chip, maintaining a perpendicular position.
4. Finishing: Cut to the desired thread length, reverse the die, and remove chips.
5. Check: Verify with a matching UNF nut or gauge; clean the thread surface.

• Thread Type: Unified Fine Thread UNF (ANSI B 1.1)
• Standard: BS 1127; 1950
• Material: HSS
• Nominal size: UNF 9/16 x 18
• Overall Length (L1): 1/2 die height
• Outside Diameter: 1.5/16 o/d
• Article Number: 83035

• 1× Bàn ren ngoài (tạo ren ngoài) HSS – UNF 9/16 x 18 (o/d 1.5/16)

Which materials can I use this die for?
Suitable for machinable, non-abrasive materials up to 800 N/mm², such as thép không hợp kim và thép hợp kim thấp.

Which standards apply?
Thread according to ANSI B 1.1 (UNF); die according to BS 1127; 1950.

What die holder do I need?
Use a die holder with an outer diameter of 1.5/16 (o/d).

Should I use cutting oil?
Yes, lubrication improves cutting performance, surface finish, and tool life.

Where can I find detailed technical data?
See the Technical Information PDF.
