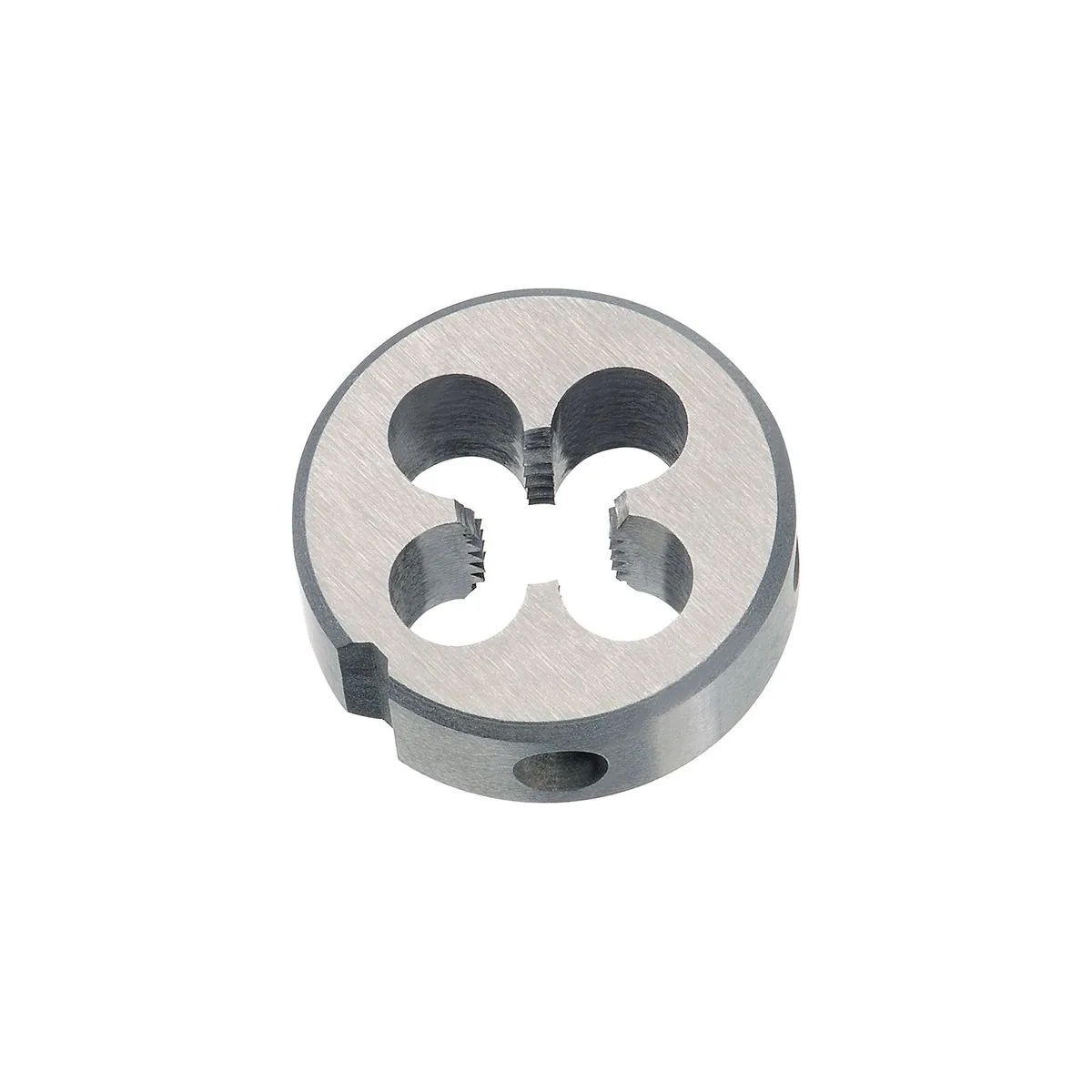

The VÖLKEL Bàn ren ngoài (tạo ren ngoài) according to DIN 223 (DIN EN 22568) is manufactured from HSS (High-Speed thép) and designed for cutting BSC bicycle threads according to BS 811. The British Standard Cycle thread is widely used in bicycle components, providing reliable and precise ren ngoài. With its robust design, this die is ideal for general use in machinable materials up to 800 N/mm², particularly unalloyed and low alloy steels.
Q1: What is a BSC bicycle thread?
A1: BSC (British Standard Cycle, BS 811) is a thread standard widely used in bicycle components for strong and precise connections.
Q2: What does DIN 223 mean?
A2: DIN 223 (DIN EN 22568) is the standard for Bàn ren ngoài (tạo ren ngoài), specifying dimensions and tolerances.
Q3: Which materials are suitable?
A3: Machinable materials up to 800 N/mm², particularly non-alloyed and low alloy steels.
Q4: Why HSS?
A4: High-Speed thép ensures tool life, heat resistance, and clean thread surfaces.
Q5: Can I use this die manually?
A5: Yes, it works with a hand Tay quay bàn ren or in a machine, provided correct alignment and lubrication are ensured.
Do you have questions about using this Bàn ren ngoài (tạo ren ngoài) or need advice on bicycle threads? We are happy to help! Reach us anytime through our biểu mẫu liên hệ.
| Loại ren | British Cycle Thread |
|---|---|
| Tiêu chuẩn | DIN 223 (DIN EN 22568) |
| Form | solid version (Form B) |
| Vật liệu | HSS |
| Tolerance | medium |
| Kích thước | BSC 5/16 x 26 |
| Outer diameter | 25.0 mm |
| EAN | 4022835793212 |
| Mã hàng | 79321 |
| Chuẩn ren | BS 811 |
| Rec. Bolt diameter | 7.81 mm |
