Bàn ren ngoài (tạo ren ngoài) BS 1127; 1950 (o/d 1") HSS - M 7 x 1.0

Name: Bàn ren ngoài (tạo ren ngoài) BS 1127; 1950 (o/d 1") HSS - M 7 x 1.0
Brand: VOLKEL
SKU: 27940
Price: 259000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Bàn ren ngoài (tạo ren ngoài) BS 1127; 1950 (o/d 1") HSS - M 7 x 1.0 VÖLKEL, mã 27940, phù hợp cho gia công ren ngoài.

SKU: 27940

259.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

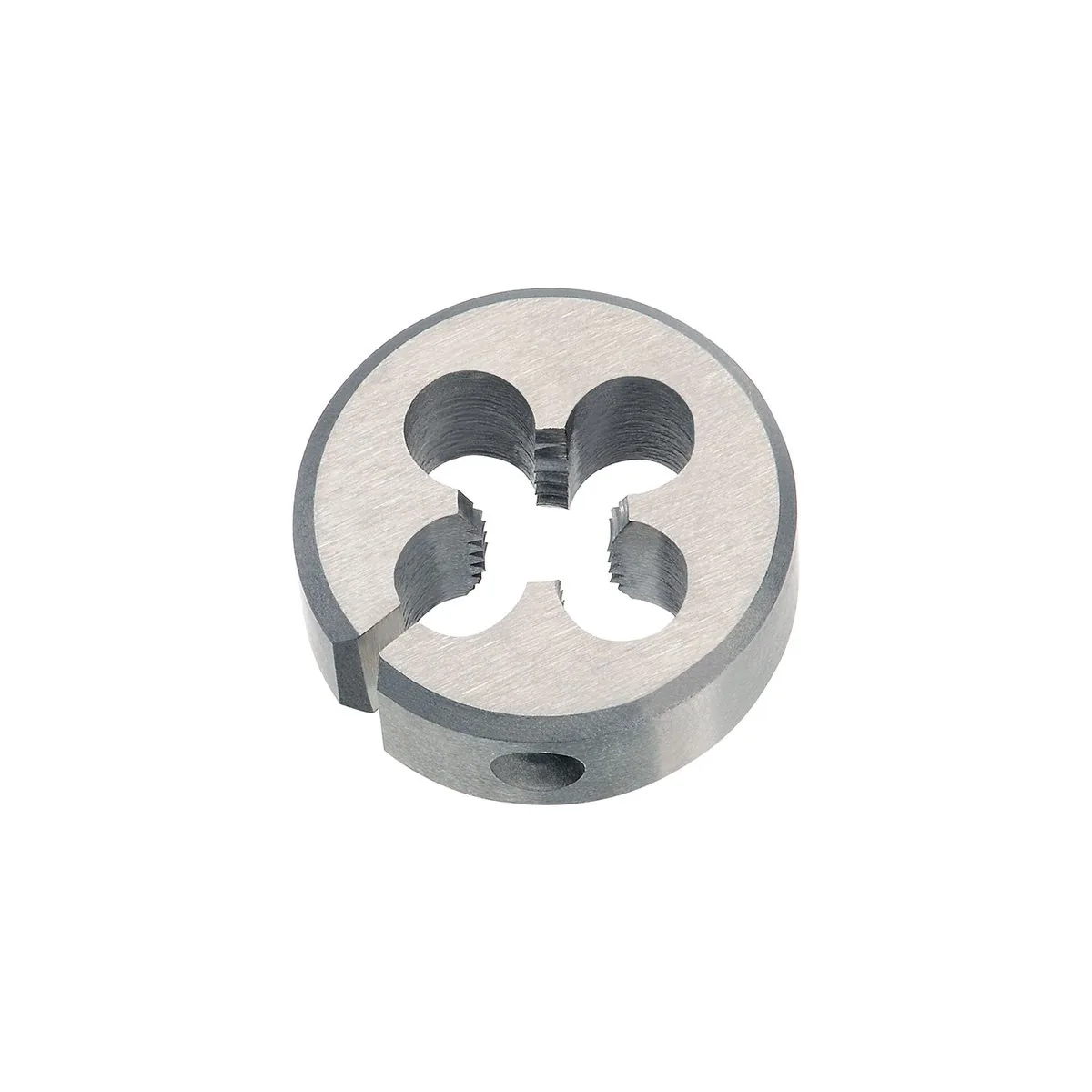

VÖLKEL Bàn ren ngoài (tạo ren ngoài) BS 1127:1950 (o/d 1″) HSS - M 7 x 1.0

The VÖLKEL Bàn ren ngoài (tạo ren ngoài) BS 1127:1950 is a precision-ground cutting tool made from durable HSS. With an outer diameter of 1 inch (25.4 mm) and Form A (open split), it provides fine adjustability for precise thread fits. Designed for general workshop use, maintenance, and production, it’s ideal for cutting or restoring external metric threads on thép không hợp kim và thép hợp kim thấp up to 800 N/mm².

Application & Benefits

For ren ngoài cutting and repair
Ideal for steels up to 800 N/mm²
Form A (open type) allows fine adjustment of thread tolerance
Precision-ground HSS ensures clean thread profiles and long life
1″ diameter fits standard die holders
Perfect for rethreading, repair, and maintenance

Step-by-Step Instructions

Prepare: Measure the workpiece and chamfer the edge for easier thread start.
Mount: Insert the die into the holder with the chamfered side facing forward and tighten securely.
Align & Lubricate: Align square to the axis and apply cutting oil liberally.
Cut: Rotate steadily clockwise without reversing; reapply Chất bôi trơn cắt gọt ren as needed.
Finish: Remove the die, clean the thread, and test fit with a nut or gauge.

Technical Data

Standard	BS 1127:1950
Thread Type	ren hệ mét ISO DIN 13
Form	Form A (Open / Split)
Material	HSS-G
Outside Diameter	25.4 mm (1 inch)
Tolerance	6g
Application Range	thép không hợp kim và thép hợp kim thấp up to 800 N/mm²

FAQ

How do I adjust the die?
Loosen or tighten the die holder’s screw to slightly open or close the die’s split gap.

Can it be used on machines?
It’s primarily designed for hand use but may be used at low speed on machines with sufficient lubrication.

Which cutting oil should I use?
Use high-performance cutting oil for thép to ensure smooth operation and longer tool life.

Is it suitable for rethreading?
Yes, it’s perfect for restoring damaged or worn ren ngoài with high accuracy.

What’s the benefit of Form A?
Form A (open) gives flexibility in fit adjustment and chip removal, making it ideal for versatile applications.

Need advice on die holders or thread standards? Contact us through our biểu mẫu liên hệ.

.accordion-container {margin-top:20px;border:1px solid #e0e0e0;border-radius:5px;overflow:hidden;} .accordion-item {border-bottom:1px solid #eee;} .accordion-item:last-child {border-bottom:none;} .accordion-header {padding:15px 20px;background:#f8f8f8;cursor:pointer;display:flex;align-items:center;justify-content:space-between;font-weight:600;color:#333;} .accordion-header h3 {margin:0;font-size:1.1em;} .accordion-header::after {content:'\25BC';font-size:0.8em;transition:transform 0.2s ease;margin-left:10px;} details[open] > summary.accordion-header::after {transform:rotate(-180deg);} .accordion-header:hover {background:#f0f0f0;} .accordion-content {padding:15px 20px;background:#fff;color:#555;line-height:1.6;} .specs-table {width:100%;border-collapse:collapse;margin-top:10px;} .specs-table td {padding:8px 10px;border-bottom:1px solid #ddd;} .specs-table td:first-child {font-weight:600;width:220px;}

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	BS 1127; 1950
Form	splitted version (Form A)
Vật liệu	HSS
Tolerance	6g
Kích thước	M 7 x 1.0
Outer diameter	1"
EAN	4022835279402
Mã hàng	27940
Chuẩn ren	DIN 13
Rec. Bolt diameter	6.88 mm
