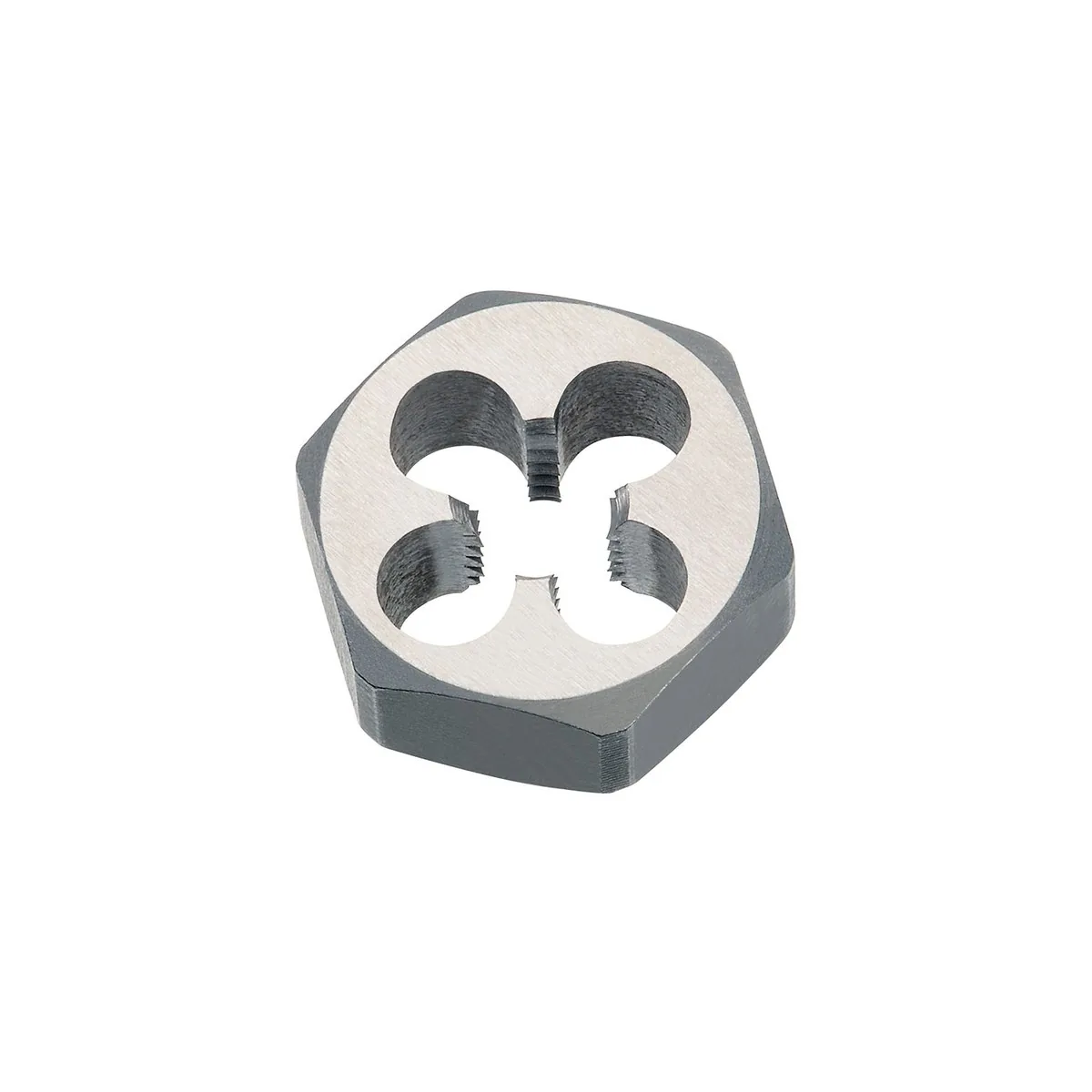

Bàn ren lục giác DIN 382 HSS - M 50 x 1.5

Applications:

• Re-cutting damaged ren ngoài M 50 x 1.5
• Repair of shafts, bolts, axles and threaded components
• Ideal for maintenance and repair in machine and plant engineering
• Perfect for on-site work without disassembly

Benefits:

• Hexagonal shape allows use with standard open-end or ring spanners
• Quick and effective restoration of thread quality
• HSS-G ensures excellent cutting performance and long tool life
• Suitable for fine-thread applications according to DIN 13

1. Thread preparation: Clean the damaged thread using a wire brush and remove burrs.
2. Positioning: Place the die nut carefully onto the thread and align it correctly.
3. Tool engagement: Use a suitable wrench (85 mm width) and start turning the die nut slowly.
4. Re-cutting: Apply steady torque and use cutting oil to reduce friction and wear.
5. Back off & check: Remove the die nut and inspect the thread visually and with a matching nut.

Additional guidance can be found in the Technical Information PDF.

• Thread type: ren hệ mét ISO bước mịn DIN 13
• Standard: DIN 382
• Material: HSS-G
• Tolerance: 6g
• Nominal size: M 50 x 1.5
• Wrench size: 85 x 22 mm
• EAN: 4022835267881
• Item number: 26788
• Technical Data Sheet (PDF): Bàn ren lục giác – Technical Information

Can this die nut repair a completely destroyed thread?
Slight to moderate thread damage can typically be restored successfully. Severely deformed threads may require cutting a new thread instead.

Is this die nut only suitable for M 50 x 1.5?
Yes, this version is specifically designed for M 50 x 1.5. Other sizes are available in the VÖLKEL range.

Can I use the tool without disassembling the part?
Yes, the Bàn ren lục giác is ideal for on-site repairs where components cannot be removed.

What Chất bôi trơn cắt gọt ren is recommended?
Use suitable cutting oil to improve cutting quality and extend tool life.

Is HSS-G suitable for stainless thép?
HSS-G works well for many steels. For tough or difficult-to-cut stainless steels, a coated die or different geometry may be advisable.
