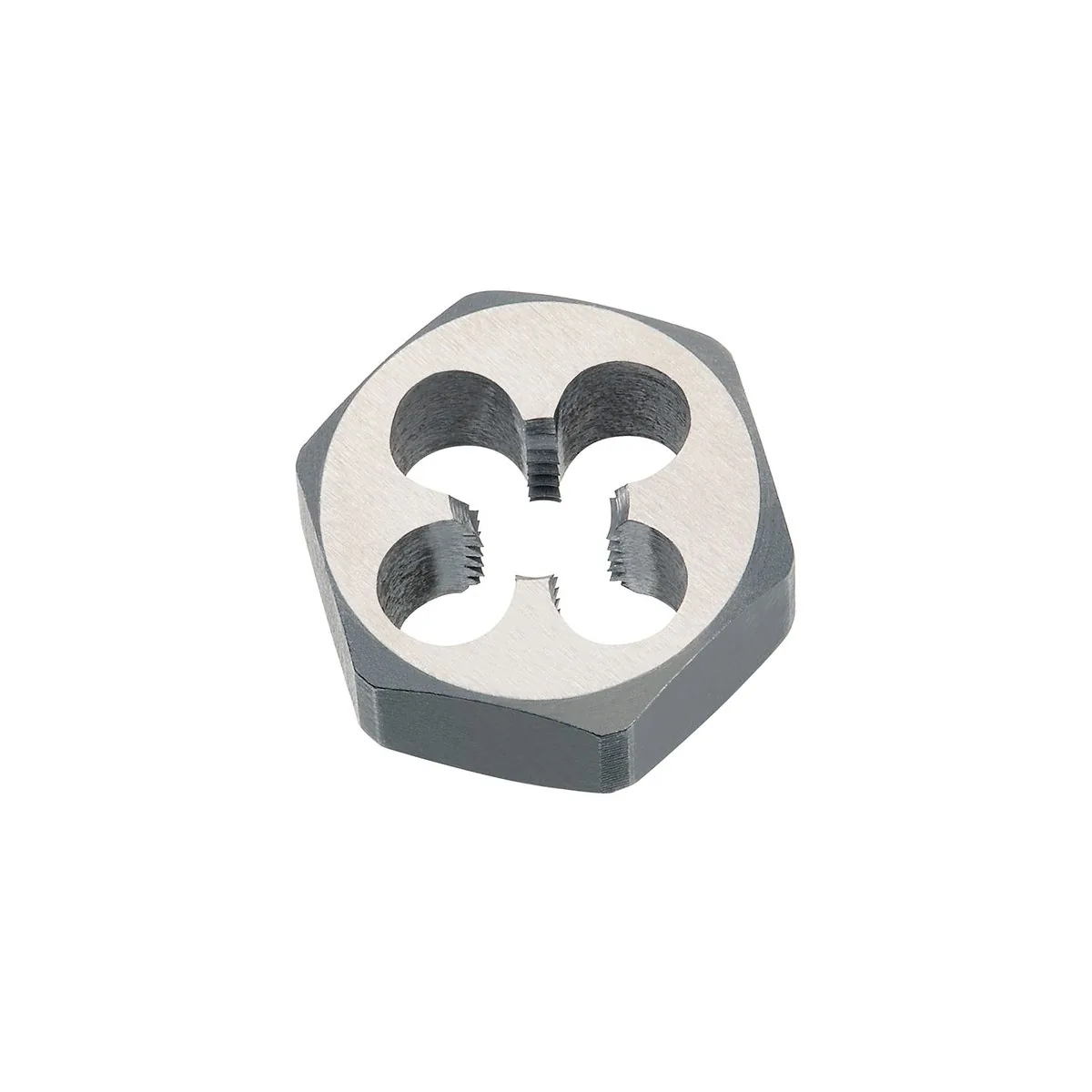

Bàn ren lục giác DIN 382 HSS - G (BSP) 1.3/8 x 11 LH

• Cut or restore ren ngoài on rods, studs, and bolts when machine access is limited.
• Use a suitable die holder to keep the die square and to apply even feed along the workpiece axis.
• Use cutting fluid matched to the workpiece material to reduce friction and protect the thread profile.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Verify the workpiece preparation before you start and stop if torque increases unexpectedly.

• Creates ren ngoài in one setup when you need flexibility on the shop floor.
• Supports thread restoration on damaged studs and rods if enough base material remains.
• Works well in repair environments where you can control alignment and lubrication.
• Allows quick adaptation to different thread designations without machine programming.

• ren ngoài cutting is sensitive to alignment and surface preparation.
• Not suitable for high volume production where a dedicated threading machine is required.

1. Prepare the rod end with a chamfer and remove burrs to support a clean thread start.
2. Clamp the workpiece securely and mark the target thread length for visual control.
3. Mount the die in a suitable die holder and tighten the retaining screws evenly.
4. Apply cutting fluid and start the die square to the workpiece axis with steady torque.
5. Advance with controlled feed and briefly back off when torque rises to clear chips.
6. Continue until the required thread length is reached, then reverse out completely.
7. Clean the thread and verify fit with a matching nut or gauge.

• 1 chiếc Bàn ren lục giác DIN 382 HSS - G (BSP) 1.3/8 x 11 LH

• Tool type: cắt ren die
• Thread system: BSP
• Thread direction: trái
• Tool material: HSS
• Standard: DIN 382

How do you select the correct tool variant from the product name? Match the thread designation and standard stated in the product name to your drawing or the mating fastener. Confirm whether you need an internal or ren ngoài tool and whether the thread is trái or right hand. What does the thread designation in the product name mean? BSPP identifies parallel British Standard Pipe threads that typically seal with a gasket or O-ring, not by thread taper. Where can you find technical guidance for Bàn ren lục giác? Technical information Bàn ren lục giác as PDF How do you reduce the risk of cross-threading at the start? Prepare a clean chamfer and keep the tool axis aligned with the hole or rod axis. Start with controlled torque and stop if the tool tilts or binds. How do you verify the result after threading? Use the mating part or a suitable thread gauge to confirm smooth engagement and correct fit. Clean the thread first so chips do not mask the result. Where can you find more product and application information in a catalog? VD 23 catalog as PDF
