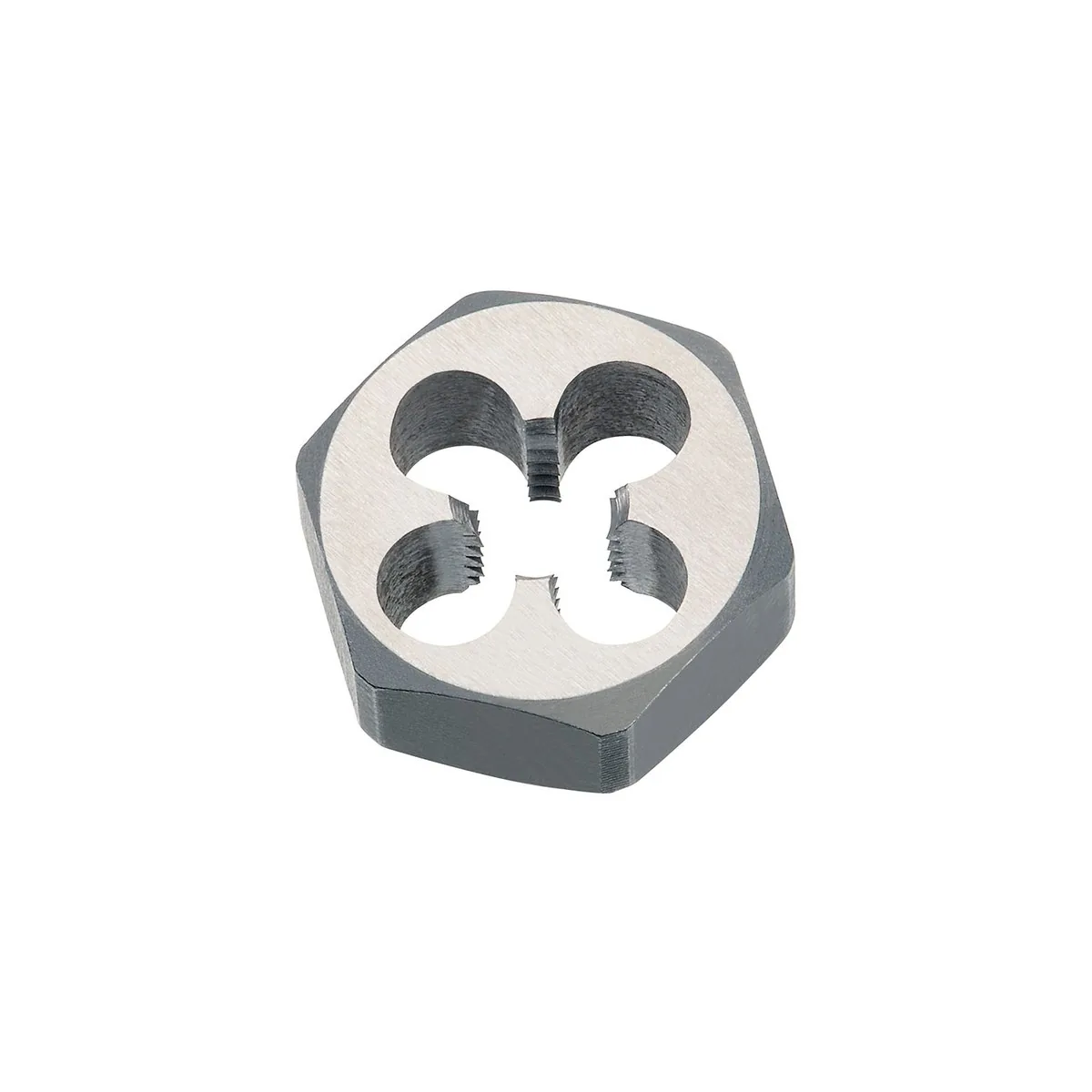

Bàn ren lục giác DIN 382 HSS - G (BSP) 1/8 x 28 LH

For cleaning and repairing damaged threads and dùng cho ứng dụng thông dụng in awkward places.

Note: This is a Bàn ren lục giác for left-hand threads.

1. Thoroughly clean the damaged thread of any dirt and chips. A wire brush is well-suited for this.
2. Select the correct wrench for the die nut's hex size (27 x 11 mm).
3. Carefully and straightly place the die nut onto the thread. The chamfering helps you set it correctly.
4. Begin turning the die nut with the wrench counter-clockwise (for left-hand threads). Apply light, even pressure.
5. Use cutting oil to reduce friction and extend the life of the die nut.
6. Continue turning the die nut until you have fully re-cut the thread.
7. Remove the die nut and clean the thread again of chips and residue.

• Thread type: Pipe thread DIN ISO 228
• Standard: DIN 382
• Material: HSS-G
• Nominal size: G 1/8 x 28
• Wrench size: 27 x 11 mm
• EAN: 4022835256120
• Item Number: 25612

Q: What is a Bàn ren lục giác and how does it differ from a regular die?

A: A Bàn ren lục giác has the shape of a nut and can therefore be operated with a standard wrench. This makes it ideal for use in confined or hard-to-reach areas where a conventional die with a stock cannot be used.

Q: What does "HSS-G" mean for this die nut?

A: HSS-G stands for "High Speed thép - Ground." This means the die nut is made from powdered metallurgical high-speed thép and is precision-ground. This results in higher hardness, better cutting performance, and a longer tool life.

Q: What is a left-hand thread and how can I identify one?

A: A left-hand thread is tightened counter-clockwise. You can identify it by its special marking (here: LH for trái) and typically by the opposite direction of the helix. They are often used on rotating components to prevent loosening due to rotational movement.

Q: Can I also cut new threads with this die nut?

A: Yes, the die nut is suitable for re-cutting and repairing, as well as for cutting new threads in hard-to-reach places. However, for regular use on a workbench, a classic die with a Tay quay bàn ren is generally the better choice.

Q: What materials is this die nut suitable for?

A: Thanks to its HSS-G material, this die nut is versatile. It is suitable for cutting into thép không hợp kim và thép hợp kim thấp up to 800 N/mm², non-ferrous metals, cast iron, and thermoplastics.
