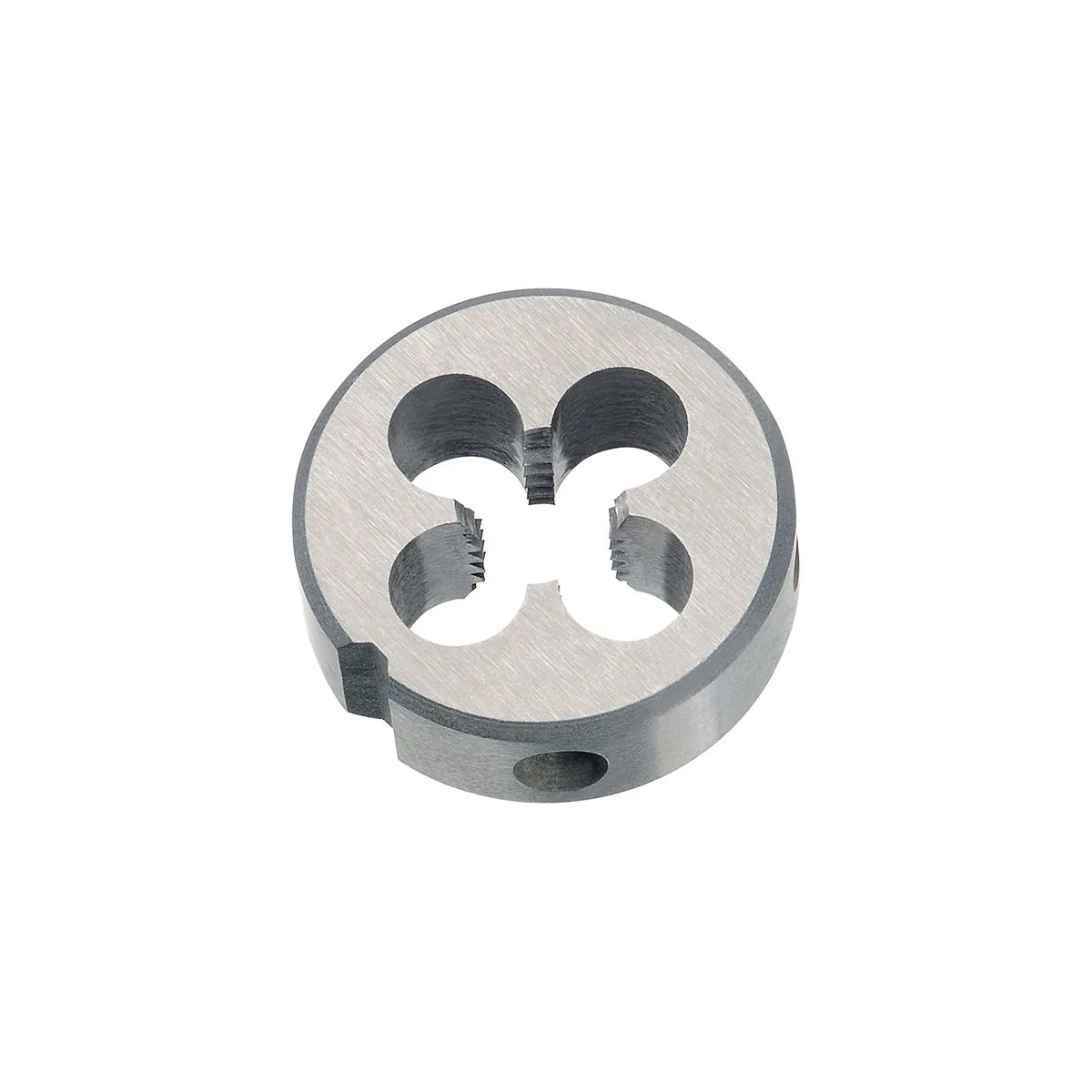

Bàn ren ngoài (tạo ren ngoài) DIN 223 (DIN EN 22568) HSS - BSF 3/16 x 32

• dùng cho ứng dụng thông dụng
• For machinable materials up to 800 N/mm²
• thép không hợp kim và thép hợp kim thấp

Advantages:

• Accurate BSF ren ngoài according to BS 84
• Ground HSS-G for long tool life and smooth cutting performance
• Chip breaking through “forward/backward” cutting technique
• Compact design suitable for standard die holders
• Technical Information (PDF)

1. Preparation: Machine the workpiece to core diameter, apply a 30–45° chamfer, and clamp securely.
2. Alignment: Place the die flat and centered in the holder, with the cutting side facing forward.
3. Cutting: Apply cutting oil; turn approx. one full rotation forward and ¼ back to break chips; maintain a perpendicular position.
4. Finishing: Cut to the desired thread length, reverse the die, and remove chips.
5. Inspection: Check with a matching BSF nut or gauge; clean the thread surface.

• Thread Type: British Standard Fine Thread BSF (BS 84)
• Standard: DIN 223 (DIN EN 22568)
• Material: HSS-G
• Nominal size: BSF 3/16 x 32
• Outside Diameter: 20 x 7 o/d
• EAN: 4022835228103
• Article Number: 22810

• 1× Bàn ren ngoài (tạo ren ngoài) HSS-G – BSF 3/16 x 32 (o/d 20 x 7)

Which materials is this die suitable for?
For machinable materials up to 800 N/mm², such as thép không hợp kim và thép hợp kim thấp.

Which standards does it comply with?
Threads according to BS 84 (BSF); die according to DIN 223 (DIN EN 22568).

Should I use cutting oil?
Yes, lubrication improves cutting performance, surface finish, and tool life.

Which holder fits?
Use a compatible die holder for 20 x 7 o/d.

Where can I find technical details?
See the Technical Information (PDF).
